Super Micro Supermicro H8DA8-2 Server Motherboard - NVIDIA Chipset - Socket F (1207) - Extended ATX - 64 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200, DDR2-400/PC2-3200 - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Super Micro Supermicro H8DA8-2 Server Motherboard - NVIDIA Chipset - Socket F (1207) - Extended ATX - 64 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200, DDR2-400/PC2-3200 - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

常规价格 $635.99 CAD
常规价格 $766.44 CAD 促销价 $635.99 CAD
促销 售罄
结账时计算的运费

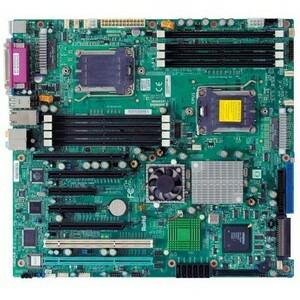

Supermicro H8DA8-2 Server Motherboard - NVIDIA Chipset - Socket F (1207) - Extended ATX - 64 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200, DDR2-400/PC2-3200 - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

The H8DA8-2/H8DAE-2 server board is based on the nVidia MCP55 Pro/IO-55/NEC uPD720400 chipset. The nVidia MCP55 Pro functions as Media and Communications Processor (MCP) and the NEC uPD720400 as a PCI-X Bridge. Controllers for the system memory are integrated directly into the AMD Opteron processors.

Gigabit Ethernet Yes
Sound Controller Manufacturer Realtek
Sound Controller Model ALC-883
Audio Channels 7.1
Additional Information

    BIOS Features:

    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 2.0
    • BIOS Rescue Hot Keys
    • USB Keyboard Support
    • Hardware BIOS Virus Protection
    • SMBIOS 2.3
Environmentally Friendly Yes
Environmental Certification RoHS
Form Factor Extended ATX
Width 13.05" (331.47 mm)
Depth 12" (304.80 mm)
Number of Total Expansion Slots 6
Number of PCI-X Slots 2
Number of PCI Express x4 Slots 1
Number of PCI Express x8 Slots 1
Number of PCI Express x16 Slots 2
Total Number of PCI Express Slots 4
Number of IDE Interfaces 1
Number of SATA Interfaces 6
Number of SCSI Interfaces 2
Total Number of Onboard USB Ports 4
Total Number of Onboard FireWire/i.LINK Ports 2
Onboard LEDs Header Yes
Onboard Audio Header Yes
RAID Levels JBOD
5
1
0
0+1
Controller Type Floppy Controller
Serial ATA/300
Ultra ATA/133 (ATA-7)
Ultra320 SCSI
RAID Supported Yes
Product Type Server Motherboard
Manufacturer Part Number MBD-H8DA8-2-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model H8DA8-2
Product Name H8DA8-2 Server Motherboard
Package Type Retail
Brand Name Supermicro
Network (RJ-45) Yes
Audio Line In Yes
Audio Line Out Yes
Serial Port Yes
Parallel Port Yes
Microphone Port Yes
Total Number of USB Ports 4
Number of USB 2.0 Ports 4
Processor Supported Opteron Quad-Core
Opteron Dual-Core
Total Processor Supported 2
Processor Socket Socket F (1207)
Processor Technology HyperTransport Technology
64-bit Processing Yes
Chipset Manufacturer NVIDIA
HyperTransport Speed (MHz) 1000
Maximum Memory Supported 64 GB
Memory Technology DDR2 SDRAM
Memory Standard DDR2-400/PC2-3200
DDR2-533/PC2-4200
DDR2-667/PC2-5300
Number of Memory Slots 8
Memory Speed Supported 400 MHz
667 MHz
533 MHz
