Super Micro Supermicro H8DG6-F Server Motherboard - AMD Chipset - Socket G34 LGA-1944 - Extended ATX - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM - 16 x Memory Slots - Gigabit Ethernet - 6 x SATA Int

Super MicroSKU: PL5-MBD-H8DG6-F-O-83722Z-EN
filler

Price:
Sale price$852.99

Description

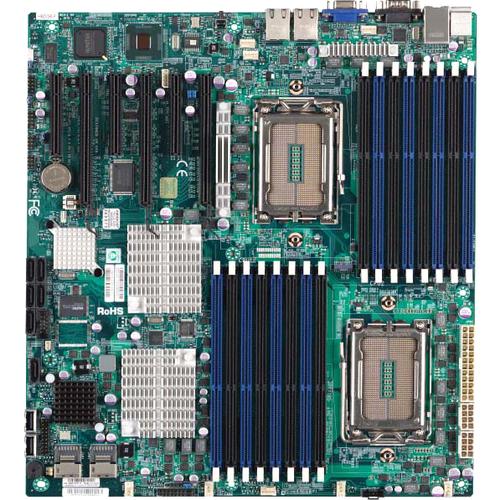

Supermicro H8DG6-F Server Motherboard - AMD Chipset - Socket G34 LGA-1944 - Extended ATX - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM - 16 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Major Benefits from Supermicro's in-house Design Superiority

Supermicro motherboard advantages:

  • Technologically-advanced Motherboard Designs Since 1993
  • Consistent highest-quality Design, Components, and Production Expertise
  • Extensive Range of x86 Serverboards Available
  • Competitive Price/Performance
  • High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
  • Standard Form Factors offer Feature - rich Support and application optimization

These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.

Gigabit Ethernet Yes
Power Supply Supported EPS12V
Limited Warranty 3 Year
Form Factor Extended ATX
Width 12" (304.80 mm)
Depth 13" (330.20 mm)
Package Contents
  • H8DG6-F Server Motherboard
  • 1 x I/O Shiel
  • 1 x 9-pin Serial Port Cable
  • 1 x 15.7-inch USB 2.0 2-Port with Key Cable
  • 2 x 50-cm I-Pass to Four SATA PBF Cables
  • 4 x 2ft. Amphenol, SATA Cable
  • 1 x Driver CD
Certifications & Standards

FCC

Environmentally Friendly Yes
Environmental Certification RoHS-6
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200eW
Graphics Controller Memory 16 MB
Onboard Video On-board Video Chipset
RAID Levels 0
1+0
1
Controller Type 6Gb/s SAS
Serial ATA/300
RAID Supported Yes
Number of Total Expansion Slots 6
Number of PCI Express x4 Slots 2
Number of PCI Express x8 Slots 1
Number of PCI Express x16 Slots 3
PCI Express Standard PCI Express 2.0
Total Number of PCI Express Slots 6
Product Type Server Motherboard
Manufacturer Part Number MBD-H8DG6-F-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model H8DG6-F
Product Name H8DG6-F Server Motherboard
Package Type Retail
Brand Name Supermicro
Number of SATA Interfaces 6
Number of SAS Interfaces 8
Total Number of Onboard USB Ports 6
Number of Onboard USB 2.0 Ports 6
Onboard LEDs Header Yes
Onboard Serial Header Yes
Processor Supported Opteron Octa-core
Opteron Dodeca-core
Total Processor Supported 2
Processor Socket Socket G34 LGA-1944
Processor Technology HyperTransport Technology
64-bit Processing Yes
Chipset Manufacturer AMD
Maximum Memory Supported 256 GB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-1333/PC3-10600
DDR3-1066/PC3-8500
DDR3-800/PC3-6400
Number of Memory Slots 16
Memory Form Factor DIMM
Memory Speed Supported 800 MHz
1066 MHz
1333 MHz
VGA Yes
Number of Network (RJ-45) Ports 3
Network (RJ-45) Yes
Audio Line In No
Audio Line Out No
Serial Port Yes
Microphone Port No
Total Number of USB Ports 2
Number of USB 2.0 Ports 2
PS/2 Port Yes
Number of PS/2 Ports 2
