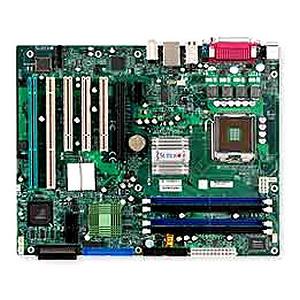

Super Micro Supermicro PDSG4 Desktop Motherboard - Intel Chipset - Socket T LGA-775 - Pentium 4 (Extreme Edition), Pentium 4, Pentium D, Celeron D Processor Supported - 8 GB - 4 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces
Super Micro Supermicro PDSG4 Desktop Motherboard - Intel Chipset - Socket T LGA-775 - Pentium 4 (Extreme Edition), Pentium 4, Pentium D, Celeron D Processor Supported - 8 GB - 4 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces
Supermicro PDSG4 Desktop Motherboard - Intel Chipset - Socket T LGA-775 - Pentium 4 (Extreme Edition), Pentium 4, Pentium D, Celeron D Processor Supported - 8 GB - 4 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces
PDSG4 Desktop Board supports single Intel Pentium D (Dual-Core), Pentium 4 Extreme Edition, Pentium 4 and Celeron D LGA (Land Grid Array) 775 Processors at system bus speeds of 1066 MHz, 800 MHz and 533 MHz. The LGA 775 Pentium D, Pentium 4, Celeron D Processor is housed in a Flip-Chip Land Grid Array (FC-LGA4) package that interfaces with the motherboard via an LGA775 socket. The PDSG4 supports the Intel Hyper-Threading (HT) Technology, the EM64T Technology, the Enhanced Intel SpeedStep Technology (EIST) and the Matrix Storage Technology.
| Gigabit Ethernet | Yes |
| Power Supply Supported | ATX12V |
| Limited Warranty | 3 Year |
| Sound Controller Model | AC'97 |
| Audio Channels | 5.1 |
| Additional Information |
Chipset: Memory Controller Hub (MCH): The I/O Controller (ICH7R): |
| Package Contents |
|
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Controller Type | Floppy Controller |
| Ultra320 SCSI | |
| Ultra ATA/100 (ATA-6) | |
| Serial ATA/300 |
| Number of PCI Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 7 |
| Number of PCI-X Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 2 |
| Number of IDE Interfaces | 1 |
| Number of SATA Interfaces | 4 |
| Number of SCSI Interfaces | 1 |
| Total Number of Onboard USB Ports | 1 |
| Onboard LEDs Header | Yes |
| Onboard Audio Header | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Serial Port | Yes |
| Parallel Port | Yes |
| Microphone Port | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 6 |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | MBD-PDSG4-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | PDSG4 |
| Product Name | PDSG4 Desktop Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Maximum Memory Supported | 8 GB |
| Memory Technology | DDR2 SDRAM |
| Memory Standard | DDR2-667/PC2-5300 |
| DDR2-533/PC2-4200 | |
| DDR2-400/PC2-3200 | |
| Number of Memory Slots | 4 |
| Memory Speed Supported | 667 MHz |
| 533 MHz | |
| 400 MHz |
| Processor Supported | Pentium 4 (Extreme Edition) |
| Pentium D | |
| Pentium 4 | |
| Celeron D | |
| Total Processor Supported | 1 |
| Processor Socket | Socket T LGA-775 |
| Processor Technology | Hyper-Threading Technology |
| Front Side Bus | 1066 MHz |
| 533 MHz | |
| 800 MHz | |
| Chipset Manufacturer | Intel |
