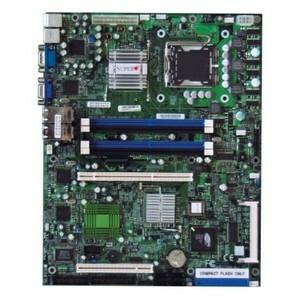

Super Micro Supermicro PDSMi-LN4 Server Motherboard - Intel Chipset - Socket T LGA-775 - ATX - Pentium 4, Pentium 4 (Extreme Edition), Celeron D, Pentium D, Pentium Extreme Edition Processor Supported - 8 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DD

Save 25%
Super MicroSKU: PL5-MBD-PDSMI-LN4-O-83674Z-EN
filler

Price:
Sale price$382.99 Regular price$508.22

Description

Supermicro PDSMi-LN4 Server Motherboard - Intel Chipset - Socket T LGA-775 - ATX - Pentium 4, Pentium 4 (Extreme Edition), Celeron D, Pentium D, Pentium Extreme Edition Processor Supported - 8 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4300 - 4 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces

The PDSMi-LN4 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Gigabit Ethernet Yes
Limited Warranty 3 Year
Additional Information
    • Will not support E2000 processors
    • IPMI 2.0 Support
    • Thermal Optimized 1U & 4LAN Design

    System BIOS

    • BIOS Type: 8Mb Flash EEPROM with Phoenix BIOS
    • Plug and Play (PnP)
    • DMI 2.3 support
    • PCI 2.2
    • ACPI 1.0
    • USB Keyboard support
Package Contents
  • PDSMi-LN4 Server Board
  • 1 x IDE cable
  • 1 x floppy drive ribbon cable
  • 4 x SATA cables
  • 1 x I/O Shield
  • 1 x Supermicro CD containing drivers and utilities
  • 1 x User/BIOS Manual
Number of PCI Slots 1
Number of Total Expansion Slots 2
Number of PCI-X Slots 1
Form Factor ATX
Width 12" (304.80 mm)
Depth 9.60" (243.84 mm)
Number of IDE Interfaces 1
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 2
Onboard LEDs Header Yes
Graphics Controller Manufacturer ATI
Graphics Controller Model RageXL
Graphics Controller Memory 8 MB
Onboard Video On-board Video Chipset
Processor Supported Pentium 4 (Extreme Edition)
Pentium Extreme Edition
Pentium D
Pentium 4
Celeron D
Total Processor Supported 1
Processor Socket Socket T LGA-775
Processor Technology Enhanced SpeedStep Technology
Front Side Bus 533 MHz
1066 MHz
800 MHz
Chipset Manufacturer Intel
VGA Yes
Network (RJ-45) Yes
Serial Port Yes
Parallel Port Yes
Total Number of USB Ports 2
Number of USB 2.0 Ports 2
RAID Levels 5
0+1
1
0
Controller Type Serial ATA/300
Ultra ATA/100 (ATA-6)
Floppy Controller
Maximum Memory Supported 8 GB
Memory Technology DDR2 SDRAM
Memory Standard DDR2-667/PC2-5300
DDR2-533/PC2-4300
Number of Memory Slots 4
Memory Speed Supported 667 MHz
533 MHz
Product Type Server Motherboard
Manufacturer Part Number MBD-PDSMI-LN4-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model PDSMi-LN4
Product Name PDSMi-LN4 Server Motherboard
Package Type Retail
Brand Name Supermicro
Packing Box
