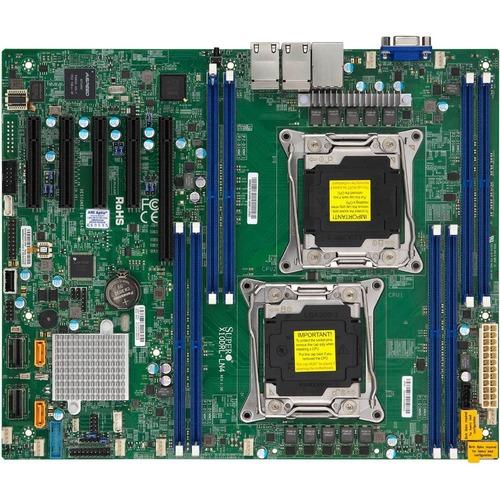

Super Micro Supermicro X10DRL-LN4 Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - ATX - Xeon Processor Supported - 1 TB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - 10 x SATA Interfaces

Super MicroSKU: PL5-MBD-X10DRL-LN4-O-4455CK-EN
filler

Price:
Sale price$541.99

Description

Supermicro X10DRL-LN4 Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - ATX - Xeon Processor Supported - 1 TB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - 10 x SATA Interfaces

DP Xeon® Motherboards - Socket R3 (LGA 2011)

Xeon® E5 Family BOARDS / Socket R3 (LGA 2011)

Introducing Supermicro's latest generation of dual processor motherboard technology based on Intel's E5-2600 v4 Broadwell / v3 Haswell processor. Supermicro's X10 motherboards are specifically designed to meet the demanding needs of today's complex computational workloads. Feature rich and highly expandable, our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory, NVMe/SAS3/SATA3 storage interfaces, 1G/10GBASE-T, 10G SFP+, 40GbE, and Infiniband QDR/FDR. With its unprecedented set of features, each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product.
Features
  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
  • Intel® C612 chipset
  • Up to 1TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 8x DIMM slots
  • 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, 1x PCI-E 3.0 x4 (in x8 slot), 1x PCI-E 2.0 x4 (in x8 slot)
  • Quad GbE LAN ports via Intel® i350
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • 10x SATA3 (6Gbps); RAID 0, 1, 5, 10
  • 2x USB 3.0 (2 via header), 5x USB 2.0 (2 rear, 2 via header, 1 Type A)
Gigabit Ethernet Yes
Limited Warranty 1 Year
VGA Yes
Total Number of USB Ports 2
Number of SATA Interfaces 10
Total Number of Onboard USB Ports 5
Number of Onboard USB 3.0 Ports 2
Form Factor ATX
Width 12" (304.80 mm)
Depth 10" (254 mm)
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2400
Onboard Video On-board Video Chipset
Number of Total Expansion Slots 5
Number of PCI Express x8 Slots 4
Number of PCI Express x16 Slots 1
Total Number of PCI Express Slots 5
Product Type Server Motherboard
Manufacturer Part Number MBD-X10DRL-LN4-O
Manufacturer Website Address http://www.supermicro.com
Packaged Quantity 1
Manufacturer Supermicro Computer, Inc
Product Model X10DRL-LN4
Product Name X10DRL-LN4 Server Motherboard
Package Type Retail
Brand Name Supermicro
Package Contents
  • X10DRL-LN4 Server Motherboard
  • 4 X I/O Cables
  • 1 X I/O Shield
  • 1 x Quick Reference Guide
Compatibility
    Supermicro SuperChassis(s):

    2U Chassis:
    • SC823TQ-653LPB
    • SC825TQ-563LPB
    • SC825TQ-R740LPB
    • SC213LT-600LPB
    3U Chassis:
    • SC833T-653B
    Mid/Mini Tower Chassis:
    • SC732i-500B
    4U / Tower Chassis:
    • SC842TQ-665B
    • SC842TQ-865B
Environmentally Friendly Yes
Environmental Certification RoHS
Processor Supported Xeon
Total Processor Supported 2
Processor Socket Socket LGA 2011-v3
Chipset Manufacturer Intel
RAID Levels 5
10
1
0
Controller Type Serial ATA/600
RAID Supported Yes
Maximum Memory Supported 1 TB
Memory Technology DDR4 SDRAM
Number of Memory Slots 8
Memory Form Factor RDIMM
DIMM
LRDIMM
Memory Speed Supported 1600 MHz
1866 MHz
2133 MHz
2400 MHz
