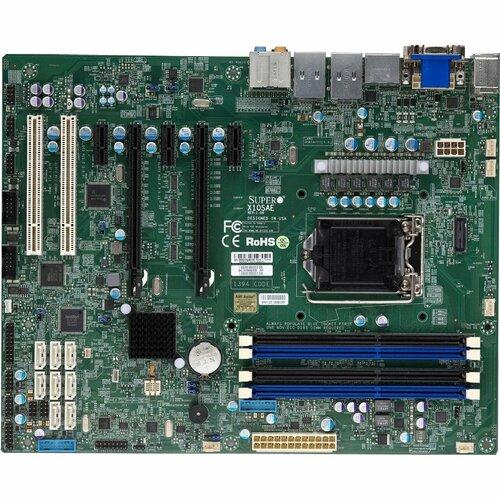

Super Micro Supermicro X10SAE Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - ATX - 32 GB DDR3 SDRAM Maximum RAM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces

Super MicroSKU: PL5-MBD-X10SAE-O-83513Z-0672042135455-EN
filler

Price:
Sale price$305.99

Description

Supermicro X10SAE Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - ATX - 32 GB DDR3 SDRAM Maximum RAM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces

Xeon® E3-1200 v3 Family Boards / Socket H3 (LGA 1150)

Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling.
Gigabit Ethernet Yes
Sound Controller Manufacturer Realtek
Sound Controller Model ALC1150
Audio Channels 7.1
Form Factor ATX
Width 12" (304.80 mm)
Depth 9.61" (244 mm)
Compatibility
    • CSE-732D4-903B
    • CSE-732D4-500B
    • CSE-732D4-865B
    • CSE-732G-903B
    • CSE-733TQ-665B
    • CSE-743TQ-1200B-SQ
    • CSE-743TQ-865B-SQ
    • CSE-745TQ-800B
    • CSE-745TQ-920B
Certifications & Standards
    • ACPI 5.0
    • CE
    • FCC
Environmentally Friendly Yes
Environmental Certification RoHS-6
RAID Levels 0
1
1+0
5
Controller Type Serial ATA/600
RAID Supported Yes
Number of PCI Slots 2
Number of PCI Express x1 Slots 3
Number of Total Expansion Slots 7
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 3.0
PCI Express 2.0
Total Number of PCI Express Slots 5
HDMI Yes
DVI Yes
VGA Yes
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
DisplayPort Yes
Number of DisplayPort Outputs 1
Number of DVI Outputs 1
Number of HDMI Outputs 1
Total Number of USB Ports 6
Number of USB 2.0 Ports 4
Number of USB 3.0 Ports 2
PS/2 Port Yes
Number of PS/2 Ports 1
Product Type Server Motherboard
Manufacturer Part Number MBD-X10SAE-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X10SAE
Product Name X10 Series X10SAE Server Motherboard
Product Series X10
Brand Name Supermicro
Number of SATA Interfaces 8
Total Number of Onboard USB Ports 10
Number of Onboard USB 2.0 Ports 6
Number of Onboard USB 3.0 Ports 4
Total Number of Onboard FireWire/i.LINK Ports 2
Number of Onboard FireWire/i.LINK 400 Ports 2
Onboard Audio Header Yes
Onboard Serial Header Yes
Processor Supported Xeon
Core i7
Core i3
Core i5
Total Processor Supported 1
Processor Socket Socket H3 LGA-1150
64-bit Processing Yes
Chipset Manufacturer Intel
Maximum Memory Supported 32 GB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-1333/PC3-10600
DDR3-1600/PC3-12800
DDR3-1066/PC3-8500
Number of Memory Slots 4
Memory Form Factor UDIMM
DIMM
Memory Speed Supported 1066 MHz
1333 MHz
1600 MHz
