Super Micro Supermicro X10SLL-SF Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - Micro ATX - 16 GB DDR3 SDRAM Maximum RAM - 2 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces

Super Micro Supermicro X10SLL-SF Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - Micro ATX - 16 GB DDR3 SDRAM Maximum RAM - 2 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces

常规价格 $208.99 CAD
常规价格 促销价 $208.99 CAD
促销 售罄
结账时计算的运费

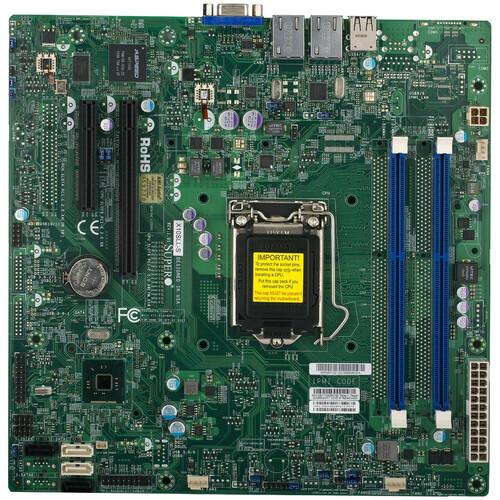

Supermicro X10SLL-SF Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - Micro ATX - 16 GB DDR3 SDRAM Maximum RAM - 2 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces

X10SLL-SF
  • Intel® Xeon® processor E3-1200 v3 family, Intel® 4th Gen Core i3 processor (formerly codenamed Haswell); Socket H3 (LGA 1150) Up to 65W CPU support
  • Intel® C222 PCH Express Chipset
  • Up to 16GB DDR3 1600MHz ECC UDIMMs in 2 sockets
  • 2 SATA3 (6Gbps, RAID 0, 1) and 2 SATA2 (3Gbps, RAID 0, 1, 10, 5)
  • 1 (x8) PCI-E 3.0 in x16, 1 (x8) PCI-E 3.0 slots
  • Video: Aspeed AST2400 (X10SLL-SF) / Aspeed AST1400 (X10SLL-S)
  • 4x USB 2.0 (2 rear, 2 via header)
  • Dual GbE LAN ports (1x via Intel® i217LM + 1x via Intel® i210AT)
  • Integrated IPMI 2.0 with KVM via LAN1 - shared (X10SLL-SF)
  • SATA DOM power connector support; TPM 1.2 header
  • Form factor: uATX, 9.6" x 9.6"
Gigabit Ethernet Yes
Limited Warranty 3 Year
Compatibility
    Supermicro SuperChassis

    Mid-Tower:
    • CSE-731i-300B
    • CSE-732D4-500B
    • CSE-732D4-865B
    • CSE-732D4-903B
    • CSE-733TQ-500B
    • CSE-733TQ-665B
Environmentally Friendly Yes
Environmental Certification RoHS-6
Form Factor Micro ATX
Width 9.60" (243.84 mm)
Depth 9.60" (243.84 mm)
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2400
Onboard Video On-board Video Chipset
Number of Total Expansion Slots 2
Number of PCI Express x8 Slots 1
Number of PCI Express x16 Slots 1
PCI Express Standard PCI Express 3.0
Total Number of PCI Express Slots 2
VGA Yes
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Total Number of USB Ports 2
Number of USB 2.0 Ports 2
Processor Supported Core i3
Celeron
Pentium
Xeon
Total Processor Supported 1
Processor Socket Socket H3 LGA-1150
64-bit Processing Yes
Chipset Manufacturer Intel
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 2
Number of Onboard USB 2.0 Ports 2
Onboard LEDs Header Yes
Onboard Serial Header Yes
RAID Levels 1
5
1+0
0
Controller Type Serial ATA/600
Serial ATA/300
RAID Supported Yes
Maximum Memory Supported 16 GB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-1600/PC3-12800
Number of Memory Slots 2
Memory Form Factor UDIMM
DIMM
Memory Speed Supported 1600 MHz
Product Type Server Motherboard
Manufacturer Part Number MBD-X10SLL-SF-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X10SLL-SF
Product Name X10 Series X10SLL-SF Server Motherboard
Package Type Retail
Product Series X10
Brand Name Supermicro
