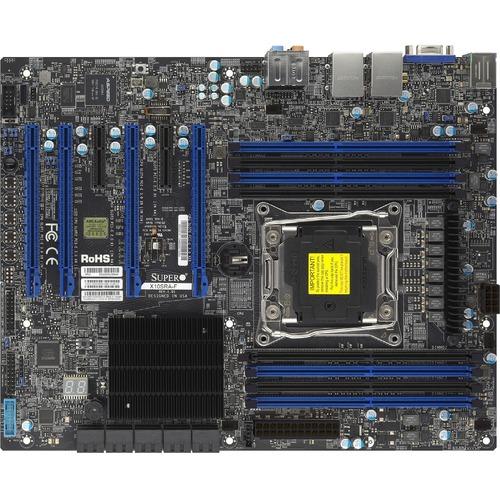

Super Micro Supermicro X10SRA-F Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - ATX - 512 GB DDR4 SDRAM Maximum RAM - 8 x Memory Slots - Gigabit Ethernet - 10 x SATA Interfaces

Super Micro Supermicro X10SRA-F Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - ATX - 512 GB DDR4 SDRAM Maximum RAM - 8 x Memory Slots - Gigabit Ethernet - 10 x SATA Interfaces

常规价格 $447.99 CAD
常规价格 促销价 $447.99 CAD
促销 售罄
结账时计算的运费

Supermicro X10SRA-F Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - ATX - 512 GB DDR4 SDRAM Maximum RAM - 8 x Memory Slots - Gigabit Ethernet - 10 x SATA Interfaces

Xeon® E5 Family Boards / Socket R3 (LGA 2011)

The new Supermicro's X10 UP Serverboards offer the latest Xeon E5-2600/1600 v3 technology solutions with the highest levels of performance in different form factors to meet various application needs. X10SRL-F, with 7x PCIe (up to 5x PCIe 3.0 x8) slots onboard, is the best choice to maximize your I/O intensive application demand. On the other hand, X10SRi-F offers the latest virtualization support at low cost. For customers who need multiple I/O solutions in a 1U chassis, X10SRW-F (up to 3x AOC) and X10SRG-F (up to 5x AOC) provide the ultimate solutions. Supermicro's first UP Storage serverboard, X10SRH-CF/-CLN4F, brings the latest SAS3 (12Gb/s data rate) technology to the market with the best performance per dollar value.
Gigabit Ethernet Yes
Onboard Video No
Sound Controller Manufacturer Realtek
Sound Controller Model ALC1150
Audio Channels 7.1
Form Factor ATX
Width 12" (304.80 mm)
Depth 9.60" (243.84 mm)
Compatibility
    Supermicro SuperChassis

    4U / Tower Chassis:

    • SC743TQ-1200B-SQ
Certifications & Standards ACPI 4.0
Environmentally Friendly Yes
Environmental Certification RoHS
Number of Total Expansion Slots 6
Number of PCI Express x16 Slots 4
PCI Express Standard PCI Express 3.0
PCI Express 2.0
Total Number of PCI Express Slots 6
Number of SATA Interfaces 10
Total Number of Onboard USB Ports 4
Number of Onboard USB 3.0 Ports 4
Onboard LEDs Header Yes
Onboard Serial Header Yes
Maximum Memory Supported 512 GB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-1866/PC4-14900
DDR4-1600/PC4-12800
DDR4-2133/PC4-17000
Number of Memory Slots 8
Memory Form Factor UDIMM
DIMM
LRDIMM
RDIMM
Memory Speed Supported 2133 MHz
1600 MHz
1866 MHz
RAID Levels 0
5
10
1
Controller Type Serial ATA/600
RAID Supported Yes
Processor Supported Xeon
Core i7
Total Processor Supported 1
Processor Socket Socket LGA 2011-v3
64-bit Processing Yes
Chipset Manufacturer Intel
Product Type Server Motherboard
Manufacturer Part Number MBD-X10SRA-F-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X10SRA-F
Product Name X10SRA-F Server Motherboard
Package Type Retail
Brand Name Supermicro
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Audio Line In Yes
Audio Line Out Yes
Microphone Port Yes
Total Number of USB Ports 8
Number of USB 3.0 Ports 8
PS/2 Port Yes
Number of PS/2 Ports 1
