Super Micro Supermicro X11SSV-LVDS Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - Mini ITX - Core i7 Processor Supported - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 5 x SATA Interfaces

Super Micro Supermicro X11SSV-LVDS Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - Mini ITX - Core i7 Processor Supported - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 5 x SATA Interfaces

常规价格 $282.99 CAD
常规价格 $358.48 CAD 促销价 $282.99 CAD
促销 售罄
结账时计算的运费

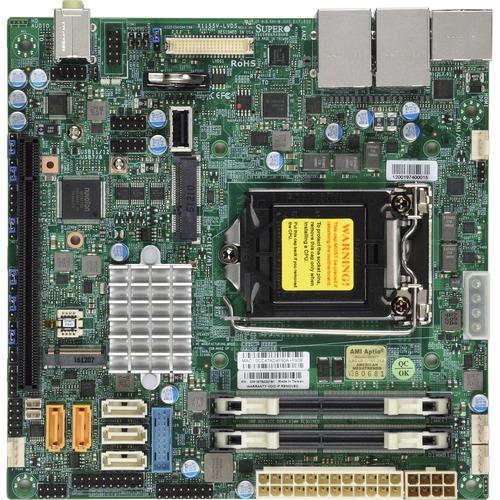

Supermicro X11SSV-LVDS Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - Mini ITX - Core i7 Processor Supported - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 5 x SATA Interfaces

Q170/H110 chipset / Socket H4 Boards

Supermicro's single processor Socket H4 designs feature the Intel® Q170/H110 embedded chipset which support the Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0, PCI-E 3.0 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, VGA and DVI ports. Designed with performance, reliability, manageability and long life in mind Supermicro's single processor motherboards are the perfect solution for ATM, Kiosk, NVR/DVR Surveillance, Medical, Storage or Server appliance and many other embedded applications.
Features
  • Single socket H4 (LGA 1151) supports Intel® 6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
  • Intel® Q170 Express chipset
  • Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2133MHz; 2 DIMM slots
  • 1 PCI-E 3.0 x16, Mini-PCIe (mSATA support) M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/80
  • Dual GbE LAN w/ Intel i219LM + i210AT
  • 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays
  • 5 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
  • 2 SATA DOM, 1 COM,TPM header, ALC 888S HD Audio
  • AMT, vPro
  • Supports 12V DC power input
Gigabit Ethernet Yes
Limited Warranty 1 Year
Number of Total Expansion Slots 1
Number of PCI Express x16 Slots 1
Total Number of PCI Express Slots 1
Number of SATA Interfaces 5
Total Number of Onboard USB Ports 7
Number of Onboard USB 3.0 Ports 2
Form Factor Mini ITX
Width 6.70" (170.18 mm)
Depth 6.70" (170.18 mm)
Graphics Controller Manufacturer Intel
Graphics Controller Model HD Graphics
Onboard Video CPU Dependent Video
HDMI Yes
DisplayPort Yes
Total Number of USB Ports 4
Number of USB 3.0 Ports 4
Product Type Server Motherboard
Manufacturer Part Number MBD-X11SSV-LVDS-O
Manufacturer Website Address http://www.supermicro.com
Packaged Quantity 1
Manufacturer Supermicro Computer, Inc
Product Model X11SSV-LVDS
Product Name X11SSV-LVDS Server Motherboard
Package Type Retail
Brand Name Supermicro
Package Contents
  • X11SSV-LVDS Server Motherboard
  • 1 x QRG
  • 4 x I/O Cables
  • 1 x I/O Shield
Compatibility
    Supermicro SuperChassis:

    Mid/Mini-Tower
    • SC721TQ-250B
    • SC731i-300B
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
RAID Levels 5
10
0
1
Controller Type Serial ATA/600
RAID Supported Yes
Maximum Memory Supported 32 GB
Memory Technology DDR4 SDRAM
Number of Memory Slots 2
Memory Form Factor SoDIMM
Memory Speed Supported 1600 MHz
1866 MHz
2133 MHz
Processor Supported Core i7
Pentium
Core i5
Core i3
Celeron
Total Processor Supported 1
Processor Socket Socket H4 LGA-1151
Chipset Manufacturer Intel
