Super Micro Supermicro X11SSW-F Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - Proprietary Form Factor - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Save 20%
Super MicroSKU: PL5-MBD-X11SSW-F-O-83509Z-EN
filler

Price:
Sale price$253.99 Regular price$316.06

Description

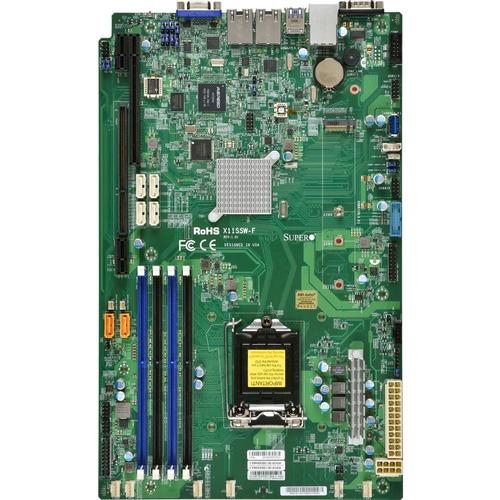

Supermicro X11SSW-F Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - Proprietary Form Factor - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151)

Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.

Compatibility
    Supermicro SuperChassis

    1U Chassis:
    • SC815TQC-R504WB
    • SC815TQ-R500WB
    • SC815TQC-605WB
    • SC116AC2-R706WB
    • SC113TQ-600WB
    • SC514-R400W
    • SC514-505
    2U Chassis:
    • SC825TQ-600WB
    • SC825TQ-R500WB
    • SC825TQ-R740WB
    • SC213AC-R920WB
    Supermicro SuperServers
    • SYS-5019S-W
Gigabit Ethernet Yes
Number of Total Expansion Slots 2
Number of PCI Express x16 Slots 2
Total Number of PCI Express Slots 2
VGA Yes
Total Number of USB Ports 4
Number of USB 3.0 Ports 2
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 7
Number of Onboard USB 3.0 Ports 3
Form Factor Proprietary Form Factor
Width 13" (330.20 mm)
Depth 8" (203.20 mm)
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2400
Onboard Video On-board Video Chipset
RAID Levels 0
1
10
5
Controller Type Serial ATA/600
RAID Supported Yes
Processor Supported Celeron
Xeon
Pentium
Core i3
Total Processor Supported 1
Processor Socket Socket H4 LGA-1151
Chipset Manufacturer Intel
Product Type Server Motherboard
Manufacturer Part Number MBD-X11SSW-F-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X11SSW-F
Product Name X11SSW-F Server Motherboard
Package Type Retail
Brand Name Supermicro
Maximum Memory Supported 64 GB
Memory Technology DDR4 SDRAM
Number of Memory Slots 4
Memory Form Factor UDIMM
DIMM
Memory Speed Supported 1866 MHz
1600 MHz
2133 MHz
