Super Micro Supermicro X7DCA-L Server Motherboard - Intel Chipset - Socket J LGA-771 - Micro ATX - Xeon Dual-Core, Xeon Quad-core Processor Supported - 48 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 6 x Memory Slots - Gigabit Ether

Save 25%
Super MicroSKU: PL5-MBD-X7DCA-L-O-83460Z-EN
filler

Price:
Sale price$391.99 Regular price$520.12
 更多支付选项

Description

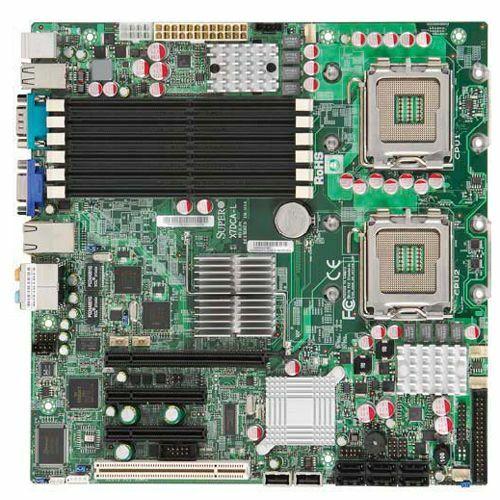

Supermicro X7DCA-L Server Motherboard - Intel Chipset - Socket J LGA-771 - Micro ATX - Xeon Dual-Core, Xeon Quad-core Processor Supported - 48 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 6 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

X7DCA-L Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Gigabit Ethernet Yes
Sound Controller Manufacturer Realtek
Sound Controller Model ALC883
Audio Channels 7.1
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 1
Onboard LEDs Header Yes
Form Factor Micro ATX
Width 10" (254 mm)
Depth 10" (254 mm)
Additional Information
    • Supports Dual channel memory bus

    System BIOS:

    • BIOS Type:
    • 16Mb SPI Flash with Phoenix BIOS
    • BIOS Features:
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 1.0/2.0/3.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 2.3

    Management:

    • Software:
    • Super Doctor III
    • Watch Dog
    • NMI
    • Power Configurations:
    • ACPI Power Management
    • Wake-On-Ring (WOR) header
    • Wake-On-LAN (WOL) header
    • CPU Fan auto-off in sleep mode
    • Power-on mode for AC power recovery
    • Internal/External modem remote ring-on

    PC Health Monitoring:

    • CPU:
    • Monitors for CPU Cores,+1.5V, +3.3V, +5V, ±12V, +5 Standby, VBAT
    • CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
    • FAN:
    • Six 4-pin fan headers
    • 6x fans with tachometer monitoring
    • Status monitor for speed control
    • Status monitor for on/off control
    • Support for 3-pins (w/o speed control)
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    • Temperature:
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Control for 6x Fan Connectors
    • PSU I2C temperature sensing logic
    • LED:
    • CPU/System Overheat LED
    • Suspend-state Indicator LED
    • +5V Standby alert LED
    • Other Features:
    • Chassis Intrusion Detection
    • Chassis Intrusion Header

    ACPI Features:

    • Slow blinking LED for suspend state indicator
    • Main switch override mechanism
    • ACPI Power Management
    • Power-on mode for power recovery

    CD/Diskette Utilities:

    • BIOS fl ash upgrade utility and device drivers
Package Contents
  • X7DCA-L Server Board
  • Motherboard Manual
  • 1 x Retention Kit
  • 1 x ATX Floppy Cable
  • 6 x 2ft. Amphenol, SATA Cable
  • 1 x CD
  • 1 x Motherboard I/O Shield
Environmentally Friendly Yes
Environmental Certification RoHS
Graphics Controller Manufacturer XGI
Graphics Controller Model Z9s
Graphics Controller Memory 32 MB
Onboard Video On-board Video Chipset
Number of PCI Slots 1
Number of Total Expansion Slots 4
Number of PCI Express x8 Slots 2
Number of PCI Express x16 Slots 1
Total Number of PCI Express Slots 3
Product Type Server Motherboard
Manufacturer Part Number MBD-X7DCA-L-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X7DCA-L
Product Name X7DCA-L Server Motherboard
Package Type Retail
Brand Name Supermicro
RAID Levels 0
5
1+0
1
Controller Type Serial ATA/300
Floppy Controller
RAID Supported Yes
Maximum Memory Supported 48 GB
Memory Technology DDR2 SDRAM
Memory Standard DDR2-667/PC2-5300
DDR2-533/PC2-4200
Number of Memory Slots 6
Memory Speed Supported 667 MHz
533 MHz
VGA Yes
Network (RJ-45) Yes
Audio Line In Yes
Audio Line Out Yes
Serial Port Yes
Microphone Port Yes
Total Number of USB Ports 4
Number of USB 2.0 Ports 4
Processor Supported Xeon Dual-Core
Xeon Quad-core
Total Processor Supported 2
Processor Socket Socket J LGA-771
Processor Technology Enhanced SpeedStep Technology
Front Side Bus 1066 MHz
1333 MHz
64-bit Processing Yes
Chipset Manufacturer Intel
