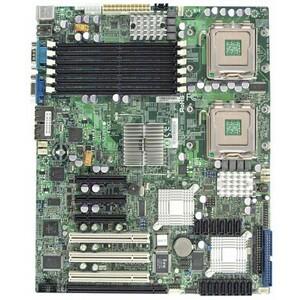

Super Micro Supermicro X7DCL-3 Server Motherboard - Intel Chipset - ATX - Xeon, Xeon Processor Supported - 32 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 6 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Super MicroSKU: PL5-MBD-X7DCL-3-O-83461Z-EN
filler

Price:
Sale price$514.99
 更多支付选项

Description

Supermicro X7DCL-3 Server Motherboard - Intel Chipset - ATX - Xeon, Xeon Processor Supported - 32 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 6 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

X7DCL-3 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Gigabit Ethernet Yes
Additional Information
    • Dual Channel memory supported

    Chipset:

    • Northbridge: Intel 5100 (San Clemente)
    • Southbridge: Intel ICH9R

    BIOS Features:

    • 8Mb Flash EEPROM with Phoenix BIOS
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 1.0/2.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 2.3

    Hardware Monitoring:

    • Monitors for CPU Cores,+1.8V, +3.3V, +5V, ±12V, +3.3V Stdby, +5 Stdby, VBAT, HT, Memory, Chipset
    • CPU Core 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
    • Total of six 4-pin fans
    • 6x fans with tachometer monitoring
    • Status monitor for speed control
    • Status monitor for on/off control
    • Support for 3-pins (w/o speed control)
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Control for 6x Fan Connectors
    • PSU I2C temperature sensing logic
    • Thermal Monitor 2 (TM2) support
    • PECI
    • CPU / System Overheat LED
    • Suspend-state Indicator LED
    • Chassis intrusion detection
    • Chassis intrusion header
    • Chipkill Support
    • Onboard voltage monitors for CPU core voltage, Memory voltage, +1.8V, +3.3V, +5V, +12V, 12V, +3.3V standby, +5V standby and VBAT)
    • Fan status monitor with firmware control
    • CPU/chassis temperature monitors
    • Low noise fan speed control
    • Platform Environment Control Interface (PECI) ready
    • CPU fan auto-off in sleep mode
    • Pulse Width Modulation (PWM) fan control
    • I2C temperature sensing logic
    • Thermal Monitor 2 (TM2) support
    • CPU slow-down on temperature overheat
    • CPU thermal trip support for processor protection
    • Power-up mode control for recovery from AC power loss
    • Chassis intrusion detection
    • System resource alert via Supero Doctor III

    ACPI Features:

    • Slow blinking LED for suspend state indicator
    • Main switch override mechanism
    • ACPI Power Management
    • Power-on mode for power recovery

    Support CD Contents:

    • Device drivers
    • Software
Environmentally Friendly Yes
Environmental Certification RoHS
Form Factor ATX
Width 12.05" (306.07 mm)
Depth 10" (254 mm)
Graphics Controller Model Z9s
Graphics Controller Memory 32 MB
Onboard Video On-board Video Chipset
Controller Type Floppy Controller
Serial Attached SCSI (SAS)
Serial ATA/300
Ultra ATA/100 (ATA-6)
Number of PCI Slots 3
Number of Total Expansion Slots 6
Number of PCI Express x8 Slots 3
Total Number of PCI Express Slots 3
Maximum Memory Supported 32 GB
Memory Technology DDR2 SDRAM
Memory Standard DDR2-533/PC2-4200
DDR2-667/PC2-5300
Number of Memory Slots 6
Memory Speed Supported 667 MHz
533 MHz
VGA Yes
Network (RJ-45) Yes
Serial Port Yes
Total Number of USB Ports 2
Number of USB 2.0 Ports 2
Number of IDE Interfaces 1
Number of SATA Interfaces 6
Number of SAS Interfaces 8
Total Number of Onboard USB Ports 3
Onboard LEDs Header Yes
Processor Supported Xeon
Processor Technology Enhanced SpeedStep Technology
Front Side Bus 1066 MHz
1333 MHz
Chipset Manufacturer Intel
Product Type Server Motherboard
Manufacturer Part Number MBD-X7DCL-3-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X7DCL-3
Product Name X7DCL-3 Server Motherboard
Package Type Retail
Brand Name Supermicro
