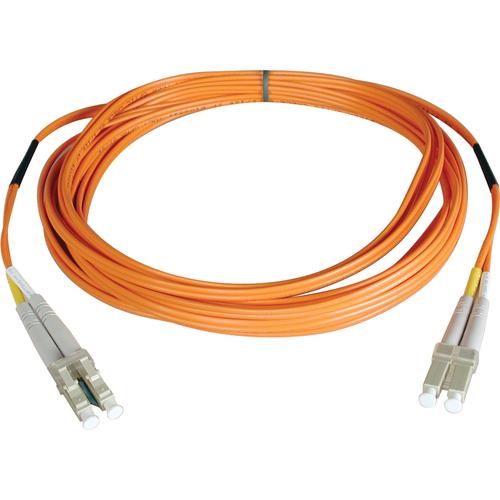

Tripp Lite Duplex Fiber Optic Patch Cable - LC Male - LC Male - 50m

Tripp Lite's 50-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 25, and 30 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-" , and for SC-SC, search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Features
  • Premium PVC multimode patch cables
  • Attenuation loss meets or exceeds the latest industry standards
  • Higher bandwidth optimized for gigabit and 10Gbps networks
  • Backward compatible with 62.5 micron fiber
  • Built-in headroom for future applications
Limited Warranty Lifetime
Additional Information
    • Fiber type: all glass graded index
    • Core diameter: two 50+/-3 microns
    • CLAD diameter: 125+/-2 microns
    • Primary coating diameter: 245+/-15 microns
    • Primary coating material: acrylate
    • Secondary coating diameter: 900+/-50 microns
    • Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
    • Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
    • Numeric apeture: .275 nominal
    • Proof test level: 100,000 PSI
    • Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Package Contents
  • Duplex Fiber Optic Patch Cable
  • 50M Duplex MMF Cable LC/LC 50/125 Fiber
Certifications & Standards
    • FDDI
Country of Origin China
Product Type Network Cable
Manufacturer Part Number N520-50M
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Name Duplex Fiber Optic Patch Cable
Brand Name Tripp Lite
Cable Length 164 ft
Jacket Type Plenum
Cable Characteristic Patch Cable
Connector on First End 2 x LC Male
Connector on Second End 2 x LC Male
Cable Type Fiber Optic
