Cyber Power CyberPower UPS Systems OL3000RTXL2U Smart App Online - Capacity: 3000 VA / 2700 W - 2U Rack/Tower - 4 Hour Recharge - 3.50 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - 6 x NEMA 5-20R, 1 x NEMA L

Cyber PowerSKU: PL5-OL3000RTXL2U-62158S-0649532604890-EN
filler

Price:
Sale price$2,817.99

Description

CyberPower UPS Systems OL3000RTXL2U Smart App Online - Capacity: 3000 VA / 2700 W - 2U Rack/Tower - 4 Hour Recharge - 3.50 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - 6 x NEMA 5-20R, 1 x NEMA L5-30R

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

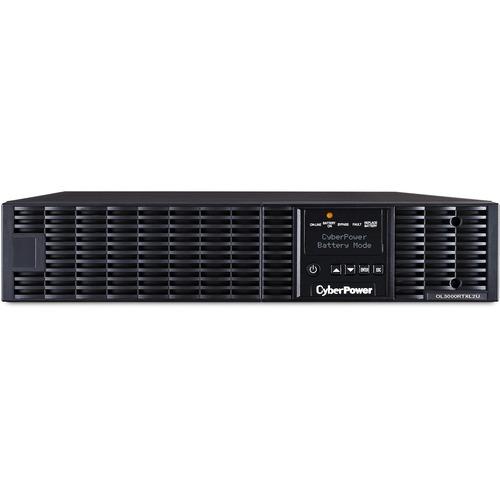

The CyberPower OL3000RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS? ECO Mode.

The OL3000RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

Features
  • Capacity: 3000 VA / 2700 W
  • Power Factor (PF): 0.9
  • Topology: Double-Conversion
  • Waveform: Sine Wave
  • Output: 100, 110, 115, 120, 125 V ±2% (configurable)
  • Plug type & cord: NEMA L5-30P, 10 ft. cord
  • Outlet types: 6 × NEMA 5-20R, 1 L5-30R
  • Monitoring & Management: USB, Serial, Network, Relay, EPO
  • Data line surge protection: Telephone, Network
  • Management software: PowerPanel® Business Edition
Status Indicators
    LED Indicators:
    • Power On (White)
    • Line Mode (Green)
    • Battery Mode (Yellow)
    • Bypass Mode (Yellow)
    • Fault (Red)
    • Replace Battery (Red)
Network Management SNMP/HTTP Remote Monitoring
Alarm Battery Mode
Limited Warranty 3 Year
Directly Connected Equipment Guarantee $400000 - Lifetime
Network (RJ-45) Yes
Modem (RJ-11) Yes
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
Thermal Dissipation 1116 BTU/h
Maximum Operating Temperature 104°F (40°C)
Maximum Operating Elevation 10000 ft (3048000 mm)
Maximum Storage Elevation 50000 ft (15240000 mm)
Operating Humidity 0% - 90%
Storage Relative Humidity 0% - 95%
Storage Temperature -4°F (-20°C) - 113°F (45°C)
Weight (Approximate) 30.93 kg
Color Black
Form Factor Rack/Tower
Rack Height 2U
Height 3.50" (88.90 mm)
Width 17" (431.80 mm)
Depth 23.62" (599.95 mm)
Application/Usage Mission Critical Equipment
Bypass Switch Manual
Automatic
Dataline Protection RJ-11
RJ-45
Emergency Power OFF Yes
Overload Protection Yes
Protection Type Surge
Plug/Connector Type NEMA L5-30P
Cord Length 10 ft
Receptacle Type NEMA 5-20R
NEMA L5-30R
EMI/RFI Noise Filter Yes
Energy Saving ECO Mode Efficiency >95%
Number of Battery & Surge Outlets 7
Transfer Time 0 ns
Receptacle Detail 1 x NEMA L5-30R
6 x NEMA 5-20R
Product Type Dual Conversion Online UPS
Manufacturer Part Number OL3000RTXL2U
Manufacturer Website Address http://www.cyberpowersystems.com
Manufacturer CyberPower Systems, Inc
Product Model OL3000RTXL2U
Product Name Smart App Online OL3000RTXL2U 3000VA 100-125V Sine Wave LCD Rack/Tower UPS
Product Line Smart Application
Brand Name CyberPower
Additional Information
    • Replacement Battery Cartridge Quantity: 1
    • Smart Battery Management (SBM) Mode: Yes
    • Circuit Breaker: 30A
    • Cold Start: Yes
    • Input Plug Type: NEMA L5-30P
    • Input Power Factor: 0.99
    • Crest Factor: 3:1
    • Harmonic Distortion: < 3% at Linear Load
    • On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
    • Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
    • VA by Input Type: 3,000 (3.0 kVA) at 120, 125 V input
    • Watts by Input Type: 2,700 (2.7 kW) at 120, 125 V input
    • Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
    • Dry Contacts: Yes
    • Expansion Slot: Yes - with optional RMCARD305 or RELAYIO500
    • LCD: Multifunction LCD
    • LED Indicators: Power On (White)
    • Management Cable: USB Cable
    • Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
    • Rotatable LCD Control Panel Option: Yes
    • Material of Construction: Metal
    • Mounting Hardware: Yes
    • ECO Mode Thermal Dissipation: 465 BTU/hr
    • Operating Relative Humidity: 0 - 90 % (non-condensing)
    • Operating Temperature: 32 - 104 °F (0 - 40 °C)
    • Storage Relative Humidity: 0 - 95% (non-condensing)
Package Contents
  • Smart App Online OL3000RTXL2U 3000VA 100-125V Sine Wave LCD Rack/Tower UPS
  • PowerPanel Business Edition Software CD
  • User Manual
  • USB Cable
  • Serial Cable
  • Phone Cable
  • Mounting Hardware
  • Registration Card
Software Included PowerPanel® Business
Certifications & Standards UL1778
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Energy Star No
Battery Chemistry Sealed Lead Acid (SLA)
Hot Swappable Yes
Battery Size 12V
Battery Capacity 9000 mAh
Number of Batteries 6
Backup/Run Time (Half Load) 11 Minute
Backup/Run Time (Full Load) 3.50 Minute
Battery Characteristics Maintenance-free
Replaceable Battery Yes
Typical Battery Recharge Time 4 Hour
Input Voltage 120 V AC
Output Voltage 120 V AC
125 V AC
115 V AC
100 V AC
110 V AC
Load Capacity 3 kVA/2.70 kW
Surge Energy Rating 1335 J
Waveform Type Sine Wave
Input Voltage Range 60 V AC 69 V AC
Output Frequency 60 Hz
Input Frequency 70 Hz
