Tripp Lite PDU3XEVSR6G60B 30-Outlets PDU - Switched - IEC 60309 60A Red 3P+N+E - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant

Tripp LiteSKU: PL5-PDU3XEVSR6G60B-2973MD-0037332195425-EN
filler

Price:
Sale price$3,828.99

Description

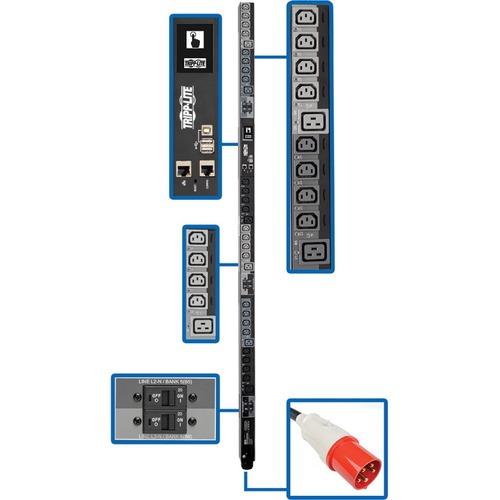

Tripp Lite PDU3XEVSR6G60B 30-Outlets PDU - Switched - IEC 60309 60A Red 3P+N+E - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant

The PDU3XEVSR6G60B 25.2kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

The 0U PDU features 30 switched 240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 1.8-meter (six-foot) cord with IEC 309 60A Red 415V plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.

Features

Distributes, Monitors and Manages Network-Grade AC Power

  • 25.2kW 415/240V switched PDU with 3-phase input
  • Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
  • IEC 309 60A Red 415V plug with 1.8m (6 ft.) cord connects to compatible AC power source
  • Firmware upgrades support future product enhancements

30 Switched 240V Outlets Distribute AC Power

  • 24 C13 and 6 C19 outlets split into 6 separately breakered load banks
  • Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
  • Plug-lock insert sleeves prevent cables from becoming accidentally disconnected

Color Touchscreen LCD

  • Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy
  • Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device
  • Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials

Built-In LX Platform Interface

  • Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
  • Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
  • Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
  • No Java required

Broad Communications Compatibility

  • Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
  • Supports automatic and manual assignment of IP address
Features
  • 25.2kW 240V 3-phase switched 1.8m 0U PDU
  • 30 individually controllable outlets-24 C13, 6 C19
  • Built-in LX Platform interface for remote access 24/7
  • IEC 309 60A Red 415V PDU input with 1.8m AC power cord
  • Touchscreen LCD with mobile access option via QR code
Network (RJ-45) Yes
Management
    • IPv4
    • IPv6
    • HTTP
    • HTTPS
    • SMTP
    • SNMPv1
    • SNMPv2
    • SNMPv3
    • telnet
    • SSH
    • FTP
    • DHCP
    • NTP
Limited Warranty 2 Year
Package Contents
  • PDU3XEVSR6G60B 30-Outlets PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 30 x Plug-lock Insert Sleeves
  • Rack-mounting Hardware
  • PDUMVROTATEBRKT Mounting Bracket Accessory
  • Owner's Manual
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
Input Voltage 415 V AC
Output Voltage 240 V AC
Input Current 35 A
Power Rating (Watt) 25.20 kW
Product Type PDU
Manufacturer Part Number PDU3XEVSR6G60B
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDU3XEVSR6G60B
Product Name PDU3XEVSR6G60B 30-Outlets PDU
Brand Name Tripp Lite
Weight (Approximate) 8.66 kg
Mount Type Rack-mountable
Rack Height 0U
Height 70" (1778 mm)
Width 2.17" (55.12 mm)
Depth 2.52" (64.01 mm)
Mounting Orientation Vertical
Protection Type Overcurrent Protection
Plug/Connector Type IEC 60309 60A Red 3P+N+E
Phase Three Phase
Receptacle Type IEC 60320 C13
IEC 60320 C19
PDU Type Switched
Receptacle Detail 24 x IEC 60320 C13
6 x IEC 60320 C19
