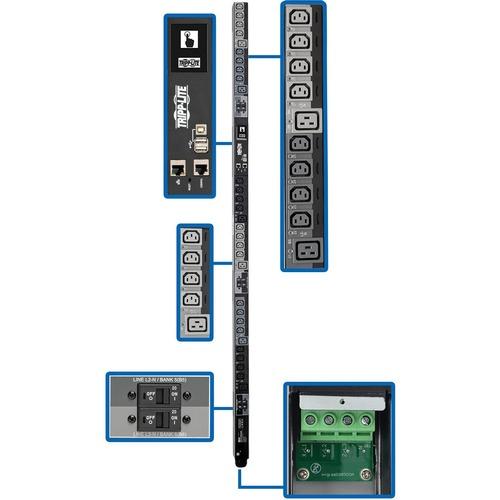

Tripp Lite PDU3XEVSRHWB 30-Outlet PDU - Switched - Hardwired - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 380 V AC, 400 V AC, 415 V AC - 0U - Vertical - Rack-mountable - TAA Compliant

Tripp LiteSKU: PL5-PDU3XEVSRHWB-3990ZT-0037332195418-EN
filler

Price:
Sale price$3,291.99

Description

Tripp Lite PDU3XEVSRHWB 30-Outlet PDU - Switched - Hardwired - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 380 V AC, 400 V AC, 415 V AC - 0U - Vertical - Rack-mountable - TAA Compliant

The PDU3XEVSRHWB 28.8kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

The 0U PDU features 30 switched 220/230/240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. Hardwire 380/400/415V input connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
Features
  • 28.8kW 220/230/240V 3-phase switched 1.8m 0U PDU
  • 30 individually controllable outlets-24 C13, 6 C19
  • Built-in LX Platform interface for remote access 24/7
  • Hardwire 380/400/415V input
  • Touchscreen LCD with mobile access option via QR code
Management
    Protocols:
    • IPv4
    • IPv6
    • HTTP
    • HTTPS
    • SMTP
    • SNMPv1
    • SNMPv2
    • SNMPv3
    • telnet
    • SSH
    • FTP
    • DHCP
    • NTP
Limited Warranty 2 Year
Package Contents
  • PDU3XEVSRHWB 30-Outlet PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 30 x Plug-lock Insert Sleeves
  • Rack-mounting Hardware
  • Mounting Bracket Accessory
  • Owner's Manual
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
Input Voltage 380 V AC
380 V AC
380 V AC
400 V AC
400 V AC
400 V AC
415 V AC
415 V AC
415 V AC
Output Voltage 220 V AC
220 V AC
220 V AC
230 V AC
240 V AC
230 V AC
240 V AC
240 V AC
230 V AC
Input Current 40 A
Power Rating (Watt) 28.80 kW
Product Type PDU
Manufacturer Part Number PDU3XEVSRHWB
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDU3XEVSRHWB
Product Name PDU3XEVSRHWB 30-Outlet PDU
Brand Name Tripp Lite
Weight (Approximate) 6.12 kg
Mount Type Rack-mountable
Rack Height 0U
Height 70" (1778 mm)
Width 2.17" (55.12 mm)
Depth 2.52" (64.01 mm)
Mounting Orientation Vertical
Protection Type Overload Protection
Plug/Connector Type Hardwired
Phase Three Phase
Receptacle Type IEC 60320 C19
IEC 60320 C13
PDU Type Switched
Receptacle Detail 6 x IEC 60320 C19
24 x IEC 60320 C13
