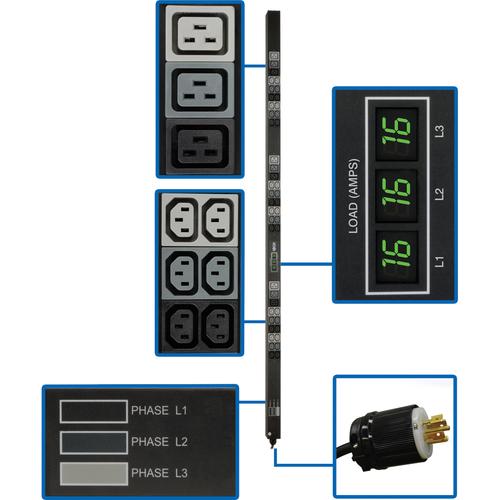

Tripp Lite Metered Rackmount PDU With Pre-Installed Mounting Buttons - NEMA L22-20P - 36 x IEC 60320 C13, 9 x IEC 60320 C19 - 11.50 kW - Vertical - Rack-mountable

Tripp LiteSKU: PL5-PDU3XMV6L2220-60449T-0037332171955-EN
filler

Price:
Sale price$1,193.99

Description

Tripp Lite Metered Rackmount PDU With Pre-Installed Mounting Buttons - NEMA L22-20P - 36 x IEC 60320 C13, 9 x IEC 60320 C19 - 11.50 kW - Vertical - Rack-mountable

Tripp Lite 3-phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Features
  • Metered 11.5kW 3-Phase 415V input 240V output PDU
  • Set of 3 digital meters report output load level per phase in amps
  • 70in / 1778mm 0U vertical format, toolless button-mount installation
  • NEMA L22-20P 3 phase input; 6ft 1.8m line cord
  • 36 C13 & 9 C19 single phase outlets; Included cord retention brackets
  • TAA Compliant
Limited Warranty 2 Year
Package Contents
  • Metered Rackmount PDU With Pre-Installed Mounting Buttons
  • Cord Retention Brackets
  • Rack Mounting Brackets
  • Owner's Manual
Environmentally Friendly Yes
Environmental Certification RoHS
Output Voltage 240 V AC
Input Voltage Range 415 V AC
Power Rating (Watt) 11.50 kW
Weight (Approximate) 5.85 kg
Mount Type Rack-mountable
Height 70" (1778 mm)
Width 2.20" (55.88 mm)
Depth 1.93" (49.02 mm)
Mounting Orientation Vertical
Plug/Connector Type NEMA L22-20P
Receptacle Type IEC 60320 C13
IEC 60320 C19
Receptacle Detail 36 x IEC 60320 C13
9 x IEC 60320 C19
Product Type PDU
Manufacturer Part Number PDU3XMV6L2220
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDU3XMV6L2220
Product Name Metered Rackmount PDU With Pre-Installed Mounting Buttons
Product Series Metered
Brand Name Tripp Lite
