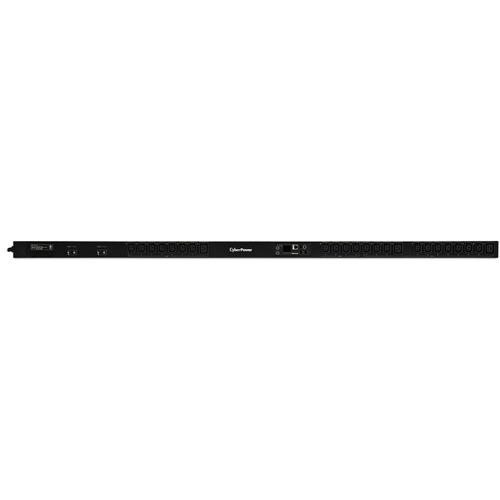

Cyber Power CyberPower PDU81105 24-Outlet PDU - Switched with Metered-by-Outlet - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 0U - Rack-mountable

Cyber PowerSKU: PL5-PDU81105-9173WD-0649532618637-EN
filler

Price:
Sale price$1,431.99
 更多支付选项

Description

CyberPower PDU81105 24-Outlet PDU - Switched with Metered-by-Outlet - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 0U - Rack-mountable

Streamline capacity planning and power management with the CyberPower PDU81105 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.

The PDU81105 supports inputs between 200-240V and includes 21 C13 and 3 C19 outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81105 is protected by a three-year limited warranty.

  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

  • Switch-Free Design
    Safeguards against accidental power shut down.

  • Switchable Outlets
    Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

  • Per Outlet Power Metering
    Provides information on the amount of power being drawn from each outlet, each circuit and the PDU as a whole.

  • CyberPower Management Console
    A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging

  • Remote and Local Monitoring
    Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.

  • Automatic Event Notifications
    Provide immediate updates about power events via email, SMS text, or SNMP traps.

  • Upgradeable Firmware
    Downloadable improvements (firmware updates) to programs that run the PDU.

  • Digital Display
    Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

  • Network-Grade Plugs and Outlets
    Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

  • Long Input Power Cord
    Reaches distant power sources, allowing the PDU to be placed where it's needed.

  • Cord Retention Tray
    Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

  • Three-Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

What's In The Box

PDU, 2 Mounting Brackets, 6 M4x5 Screws, 6 M5x12 Screws/Washers, 6 M3x6 screws, Cord Retention Tray, Cable Ties, RJ45/DB9 Cable, User's Manual Registration and Download Cards

Features
  • Provides active metering of each outlet, each circuit and PDU as a whole Allows for local and remote on/off switching control of individual outlets
  • Provides immediate alerts about power events via email, SMS or SNMP traps
  • Connects to your LAN/WAN via standard RJ45 Ethernet connection
  • Includes 3-year limited warranty
Network (RJ-45) Yes
Limited Warranty 3 Year
Management
    • IPv4
    • TCP/IP
    • UDP
    • SNMPv1
    • HTTP
    • NTP
    • DNS
    • Telnet
    • DHCP
    • SMTP
    • FTP
    • IPv6
    • SNMPv3
    • HTTPs
    • SSH
    • SSL
    • TLS
    • LDAP(S)
    • RADIUS
    • Syslog
    • CLI
    • Windows AD
    • EnergyWise v1.2
Remote Outlet Switching Yes
Input Voltage 230 V AC
Input Current 30 A
Input Voltage Range 200 V AC - 240 V AC
Package Contents
  • PDU81105 24-Outlet PDU
  • 2 x Mounting Brackets
  • 6 x M4x5 Screws
  • 6 x M5x12 Screws/Washers
  • 6 x M3x6 Screws
  • Cord Retention Tray
  • Cable Ties
  • RJ45/DB9 Cable
  • User's Manual Registration
  • Download Cards
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Energy Star No
Weight (Approximate) 8 kg
Length 1.90" (48.26 mm)
Mount Type Rack-mountable
Rack Height 0U
Height 65.50" (1663.70 mm)
Width 2.20" (55.88 mm)
Product Type PDU
Manufacturer Part Number PDU81105
Manufacturer Website Address http://www.cyberpowersystems.com
Manufacturer CyberPower Systems, Inc
Product Model PDU81105
Product Name PDU81105 24-Outlet PDU
Brand Name CyberPower
Protection Type Overload Protection
Accidental Power Shutdown
Phase Single Phase
Receptacle Type IEC 60320 C19
IEC 60320 C13
PDU Type Switched with Metered-by-Outlet
Receptacle Detail 21 x IEC 60320 C13
3 x IEC 60320 C19
