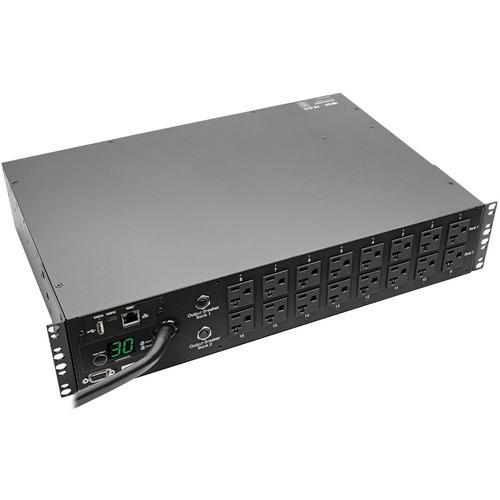

Tripp Lite PDUMH30NET PDU Switched 120V 30A 16 Outlet - 16 x NEMA 5-20R - 2U Rack-mountable

Tripp LiteSKU: PL5-PDUMH30NET-22634H-0037332139313-EN
filler

Price:
Sale price$1,532.99

Description

Tripp Lite PDUMH30NET PDU Switched 120V 30A 16 Outlet - 16 x NEMA 5-20R - 2U Rack-mountable

The PDUMH30NET 2.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.
The switched PDU features 16 individually controllable NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-30P plug connects the PDU to a compatible AC source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP.
A digital ammeter allows you to monitor each load bank's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The switched PDU mounts in 2U of space in EIA-standard 19-inch racks using the included hardware or beneath a counter with user-supplied screws.
Features
  • Switched 30A 120V PDU, 2U horizontal rackmount format
  • Reports voltage, frequency & load level via ethernet interface
  • Visual current meter, Reversible housing
  • NEMA L5-30P input plug with attached 10 ft. / 3m line cord
  • 16 NEMA 5-15/20R switched outlets with cord retention brackets
  • Temperature, humidity and contact closure monitoring options
  • TAA Compliant
Management

    Supported Protocols:

    • HTTP
    • HTTPS
    • PowerAlert Network Management System
    • SMTP
    • SNMPv1
    • SNMPv2
    • Telnet
    • FTP
    • DHCP
    • BOOTP
    • NTP
Limited Warranty 2 Year
Input Voltage 120 V AC
Output Voltage 120 V AC
Package Contents
  • PDUMH30NET PDU Switched 120V 30A 16 Outlet
  • Rackmount PDU
  • 4 post compatible mounting brackets
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
Protection Type Overload Protection
Plug/Connector Type NEMA L5-30P
Receptacle Type NEMA 5-20R
PDU Type Switched
Receptacle Detail 16 x NEMA 5-20R
Weight (Approximate) 6.26 kg
Mount Type Rack-mountable
Rack Height 2U
Height 3.50" (88.90 mm)
Width 17.50" (444.50 mm)
Depth 12.50" (317.50 mm)
Product Type PDU
Manufacturer Part Number PDUMH30NET
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDUMH30NET
Product Name PDUMH30NET PDU Switched 120V 30A 16 Outlet
Brand Name Tripp Lite
