Tripp Lite Metered PDUMNH32HV 16-Outlets 7.4kW PDU - 4 x IEC 60320 C19, 12 x IEC 60320 C13 - 230 V AC - 7.40 kW - 2U - Horizontal - Rack-mountable
Tripp Lite Metered PDUMNH32HV 16-Outlets 7.4kW PDU - 4 x IEC 60320 C19, 12 x IEC 60320 C13 - 230 V AC - 7.40 kW - 2U - Horizontal - Rack-mountable
Tripp Lite Metered PDUMNH32HV 16-Outlets 7.4kW PDU - 4 x IEC 60320 C19, 12 x IEC 60320 C13 - 230 V AC - 7.40 kW - 2U - Horizontal - Rack-mountable

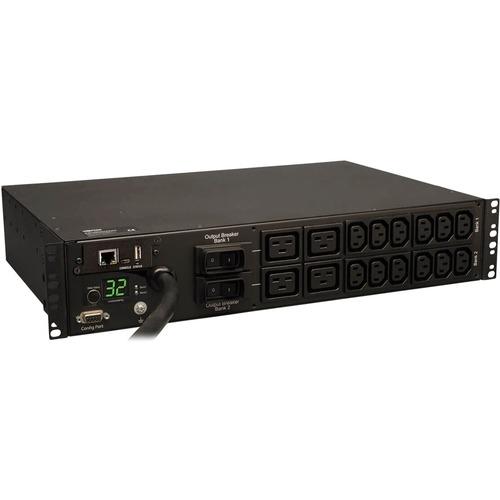

PDUMNH32HV Monitored 32A 2U horizontal rackmount PDU supports 7.4kW maximum capacity at 230V. Includes attached Blue 230V IEC-309 32A (2P+E) input plug and 16 230V outlets (12 C13, 4 C19) arranged in two separately breakered 8 outlet banks. Visual and remote current monitoring tracks the current for each 8 outlet bank separately, plus offers total power consumption for all 16 outlets combined. Supports 2U installation in 19 inch rackmount applications. Included cord retention brackets keep vital network equipment plugged in and continuously powered.- Monitored 32A 230V PDU, 2U horizontal rackmount
- Reports voltage, frequency & load level via ethernet interface
- Visual current meter, Reversible housing
- Blue 230V IEC-309 32A (2P+E) input plug
- 16 outlets (12 C13, 4 C19) with included cord retention brackets
- Temperature, humidity and contact-closure monitoring options
| Management |
Protocols: |
| Limited Warranty | 2 Year |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Power Rating (Watt) | 7.40 kW |
| Additional Information |
Plug Type: IEC-309 32A (2P+E) |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Protection Type | Overload Protection |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| Receptacle Detail | 12 x IEC 60320 C13 |
| 4 x IEC 60320 C19 |
| Weight (Approximate) | 6.21 kg |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 12.50" (317.50 mm) |
| Mounting Orientation | Horizontal |
| Product Type | PDU |
| Manufacturer Part Number | PDUMNH32HV |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite |
| Product Model | PDUMNH32HV |
| Product Name | Metered PDUMNH32HV 16-Outlets 7.4kW PDU |
| Product Series | Metered |
| Brand Name | Tripp Lite |
