Cyber Power CyberPower PR2200RTXL2UHVAN New Smart App Sinewave UPS Systems - 120 VAC, NEMA L6-20P, 2U, Rack / Tower, Sine Wave, 6 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

Cyber PowerSKU: PL5-PR2200RTXL2UHVAN-8887ZS-0649532930104-EN
filler

Price:
Sale price$2,288.99

Description

CyberPower PR2200RTXL2UHVAN New Smart App Sinewave UPS Systems - 120 VAC, NEMA L6-20P, 2U, Rack / Tower, Sine Wave, 6 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

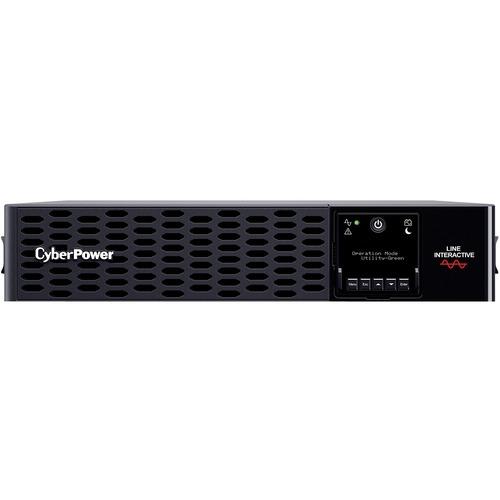

The PR2200RTXL2UHVAN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

The Smart App Sinewave PR2200RTXL2UHVAN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UHVAN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RTXL2UHVAN.

Features
  • Capacity: 2200 VA / 2200 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 200-240 VAC ± 5%
  • Plug type & cord: NEMA L6-20P, 10 ft. cord
  • Outlet types: 4 × NEMA 6-20R; 2 x NEMA L6-20R
  • Communication: USB, Serial, SNMP, Relay, EPO
  • Management software: PowerPanel® Business Edition
  • Remote management: Yes, pre-installed RMCARD205
  • Warranty: 3 year
Status Indicators
    Multifunction LCD Panel:
    • 47 Settings (27 setup and control items + 20 status updates and log menus)
    LED Indicators:
    • Power on
    • Line mode
    • Battery mode
    • Fault
    • Night mode
Limited Warranty 3 Year
Directly Connected Equipment Guarantee $400000 - Lifetime
Network (RJ-45) Yes
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
Network Management SNMP/HTTP Remote Monitoring
Alarm Low Battery
Over-charge
Overheat
Overload
Battery Mode
Sound Emission 57.5 dB(A)
Thermal Dissipation 83.10 BTU/h
Maximum Operating Temperature 104°F (40°C)
Maximum Operating Elevation 9842.52 ft (3000000 mm)
Maximum Storage Elevation 49212.60 ft (15000000 mm)
Storage Relative Humidity 0% - 95%
Storage Temperature 5°F (-15°C) - 113°F (45°C)
Weight (Approximate) 42 kg
Color Black
Form Factor Rack/Tower
Rack Height 2U
Height 3.39" (86 mm)
Width 17.09" (434 mm)
Depth 24.80" (630 mm)
Dataline Protection RJ-45
Emergency Power OFF Yes
Overload Protection Yes
Plug/Connector Type NEMA L6-20P
Cord Length 10 ft
Receptacle Type NEMA L6-20R
NEMA 6-20R
EMI/RFI Noise Filter Yes
AVR Yes
Energy Saving GreenPower UPS? Bypass Technology
Number of Battery & Surge Outlets 6
Number of Critical Load Outlets 2
Transfer Time 4 ms
Receptacle Detail 4 x NEMA 6-20R
2 x NEMA L6-20R
Additional Information
    • Active PFC Compatible: Yes
    • Extended Battery Option: Yes
    • Plug Style: Straight, Twist Lock
    • Circuit Breaker: 20A
    • Automatic Voltage Regulation: Double boost, single buck
    • Rated Power Factor: 1
    • Enclosure Construction: Metal
    • Management Cable: USB Cable, EPO Cable
    • Dry Contacts: Yes
    • Internal Circuitry Limiting
    • Replacement Battery Cartridge Quantity: 1
    • Adjustable Voltage Range: 70 - 155 Vac
    • Overload Protection: Internal Circuitry Limiting, Circuit Breaker
    • Operating Relative Humidity: 0 - 95% (non-condensing)
    • Operating Temperature: 32 °F to 104°F (0°C to 40°C)
Software Included PowerPanel® Business Edition
Certifications & Standards
    • CE
    • UL1778
    • FCC Class A
    • VCCI
Country of Origin Philippines
Environmentally Friendly Yes
Environmental Certification GreenPower UPS
RoHS
Energy Star Yes
Product Type Line-interactive UPS
Manufacturer Part Number PR2200RTXL2UHVAN
Manufacturer Website Address http://www.cyberpowersystems.com
Manufacturer CyberPower Systems, Inc
Product Model PR2200RTXL2UHVAN
Product Name Smart App Sinewave PR2200RTXL2UHVAN 2200VA Rack/Tower UPS
Product Line Smart App Sinewave
Brand Name CyberPower
Product Condition New
Battery Chemistry Lead Acid
Hot Swappable Yes
Battery Size 12V
Battery Capacity 6000 mAh
Number of Batteries 8
Backup/Run Time (Half Load) 15.20 Minute
Backup/Run Time (Full Load) 5.30 Minute
Battery Characteristics Sealed
Replaceable Battery Yes
Typical Battery Recharge Time 3 Hour
Circuit Breaker Yes
Input Voltage 230 V AC
Output Voltage 220 V AC
240 V AC
230 V AC
208 V AC
200 V AC
Load Capacity 2.20 kVA/2.20 kW
Surge Energy Rating 2430 J
Waveform Type Sine Wave
Input Voltage Range 131 V AC 302 V AC
Output Frequency 60 Hz
Input Frequency 63 Hz
