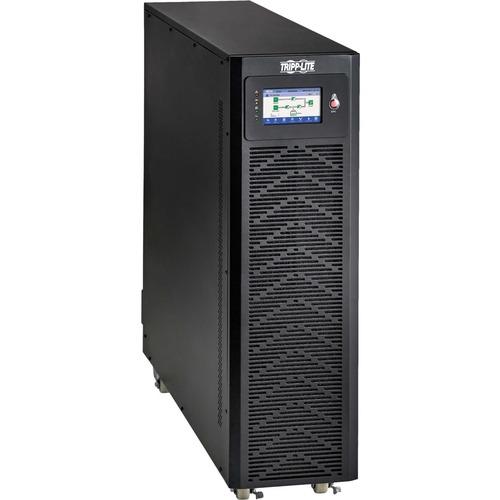

Tripp Lite SmartOnline S3M10K1B 10kVA Tower UPS - Tower - 8 Hour Recharge - 4 Minute Stand-by - 120 V AC, 230 V AC Input - 120 V AC, 208 V AC, 127 V AC, 220 V AC Output

Tripp LiteSKU: PL5-S3M10K1B-680A5N-0037332247766-EN
filler

Price:
Sale price$13,492.99
 更多支付选项

Description

Tripp Lite SmartOnline S3M10K1B 10kVA Tower UPS - Tower - 8 Hour Recharge - 4 Minute Stand-by - 120 V AC, 230 V AC Input - 120 V AC, 208 V AC, 127 V AC, 220 V AC Output

Battery Backup and VFI Operation Protect Critical Loads

The SmartOnline® S3M10K1B IGBT UPS supports the continuous availability of your most important operational and IT equipment loads through all power conditions, providing a compact backup power platform that's easy to manage and inexpensive to operate. Sophisticated voltage- and frequency-independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 10kVA/kW of clean, continuous power, this 3-phase UPS system is ideally suited for critical applications in banking, education, healthcare, government and manufacturing sectors.

Best-in-Class Footprint for Easy Integration into Your Network Application

The UPS market's smallest footprint for 3-phase 208V systems lets you install the S3M10K1B in spaces that would otherwise have required expensive retrofitting. By achieving its compact size without compromising runtime, reliability or functionality, the S3M10K1B is recommended for data centers, colocation facilities and edge computing environments that require high efficiency, high performance and clean, reliable power protection, while preserving as much space as possible for revenue-generating server racks.

Efficient Operation and Design Reduces Cost of Ownership

ENERGY STAR 2.0-certified technology provides high operational efficiency to save on utility and cooling costs, as well as protect the environment. This UPS achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. Unity output power factor (1.0) lets you support more equipment. A low THDi (<1%) improves generator compatibility. A low THDv (?1%) and active power factor correction with DSP control improve output performance. The hardware and firmware platform design reduces the number of unique boards, improving mean time to repair (MTTR) and resulting in reduced downtime. Automatic and maintenance bypass transfer UPS load to utility power during faults, overloads and maintenance, which also avoids costly system downtime.

Supplies Reliable Battery Backup with Expandable Runtime Options

One internal battery module provides 10 minutes of support at half load and four minutes at full load with zero transfer time. Adding external battery cabinets, such as BP240V09K and BP240V09 (sold separately), provides extended runtime and supports critical loads uninterrupted during successive utility network outages. A one-touch cold-start button powers up the UPS with battery power only.

Intuitive LCD Interface Delivers Important Performance Information at a Glance

The large five-inch touchscreen LCD panel displays critical operating conditions and diagnostic data, including battery and load status. Four LEDs provide information about AC, bypass, battery and fault status.

Remote Network Monitoring and Control Available 24 Hours a Day

The optional Java-free WEBCARDLXMINI network management card (sold separately) enables remote management through embedded HTML5 web, SSH/telnet and SNMP interfaces, as well as integration with a wide range of network management systems and DCIM platforms. WEBCARDLXMINI also supports EnviroSense2 (sold separately), which monitors temperature, humidity and other environmental factors. Three MODBUS ports (RS-485, USB, RS-232) may also be used to monitor and manage the UPS. A Remote Emergency Power Off (REPO) port allows shutdown from a safe distance during emergencies.

Features
  • Best-in-class footprint saves space in server room for revenue-generating equipment
  • ENERGY STAR 2.0-certified efficiency up to 98% helps reduce utility and cooling costs
  • Unity output power factor (1.0) allows support of more equipment without overloading
  • Optional WEBCARDLXMINI network card allows cost-effective remote management 24/7
  • Parallel capability provides increased capacity and redundancy up to 4 units
  • 2-year limited warranty
Status Indicators
    Sub-screens Status:
    • Home
    • Status
    • Alarm
    • Setting
    • Maint
    • Common
    • About

    LED Indicators:

    • Four LEDs indicate AC mode (Green)
    • Bypass (Yellow)
    • Battery (Yellow)
    • Fault (Red) Modes
Limited Warranty 2 Year
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
Thermal Dissipation 2457 BTU/h
Maximum Operating Temperature 104°F (40°C)
Maximum Operating Elevation 3280 ft (999744 mm)
Storage Temperature 32°F (0°C) - 95°F (35°C)
Package Contents
  • SmartOnline S3M10K1B 10kVA Tower UPS
  • RS-232 Cable (Male/Female), 5 ft. (1.5 m)
  • Parallel Cable (Male/Female), 5 ft. (1.5 m)
  • USB Cable, 5 ft. (1.5 m)
  • Battery Cable Anderson Connectors Set to Terminate a Battery Cable (2 Black, 2 White, 2 Red and several metal terminals)
  • Cable Glands (x6) for Cable Landing Box (waterproof fasteners)
  • Dry Contact Connector (Green)
  • Owner's Manual
Environmentally Friendly Yes
Environmental Certification RoHS
Energy Star Yes
Application/Usage Government
Healthcare
Industrial
IT Equipment
Manufacturing Facility
Network
Server Room
Telecommunication
Finance
Education
Edge Computing
Banking
Data Center
Critical System
Overload Protection Yes
Plug/Connector Type Hardwired
Phase Three Phase
Receptacle Type Hardwired
EMI/RFI Noise Filter Yes
Energy Saving High efficiency economy mode operation; Schedulable daily hours of economy mode operation
Transfer Time 0 ns
Form Factor Tower
Height 34.17" (868 mm)
Width 9.84" (250 mm)
Depth 35.43" (900 mm)
Number of Batteries 1
Backup/Run Time (Half Load) 10 Minute
Backup/Run Time (Full Load) 4 Minute
DC System Voltage 120 V DC
Typical Battery Recharge Time 8 Hour
Network Management SSH
SNMP Manageable
Telnet
Alarm Shutdown
Overload
Low Battery
Bypass Mode
Product Type Dual Conversion Online UPS
Manufacturer Part Number S3M10K1B
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model S3M10K1B
Product Name SmartOnline S3M10K1B 10kVA Tower UPS
Product Line SmartOnline
Product Series S3M
Brand Name Tripp Lite
Input Voltage 230 V AC
120 V AC
Output Voltage 127 V AC
208 V AC
220 V AC
120 V AC
Load Capacity 10 kVA/10 kW
Waveform Type Pure Sine Wave
Output Frequency 60 Hz
