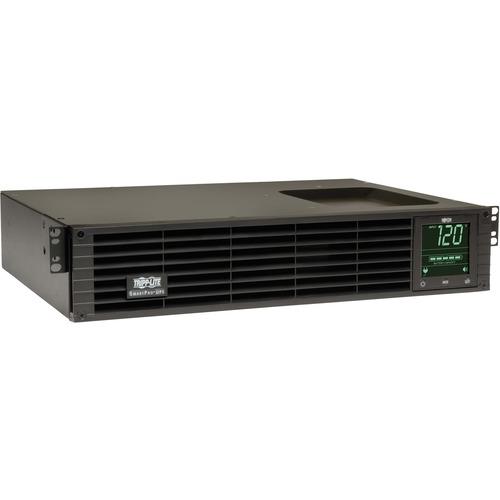

Tripp Lite SmartPro SMART1000RM2UN 1000VA Rack-mountable UPS - 2U Rack-mountable - AVR - 4 Hour Recharge - 5.30 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - 6 x NEMA 5-15R
1000VA/800W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
The SmartPro® line-interactive SMART1000RM2UN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The six-outlet 120V battery backup with 0.8 power factor is ideal protection for small networks, wiring closets, security systems, telecom, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep a half load (400W) powered as long as 15 minutes and a full load (800W) up to 5.3 minutes.
Installed WEBCARDLX Network Interface Offers 24/7 Access
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimal communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
6 NEMA Outlets Protect Your Connected Components
Six 5-15R outlets provide battery backup, 570 joules of surge protection and voltage regulation for your crucial components. Two independently switched two-outlet load banks enable both scheduled and real-time remote rebooting and load shedding.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART1000RM2UN can correct brownouts as low as 83V and overvoltages as high as 147V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Designed for High Efficiency to Help You Save Money and Protect the Environment
A 95% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Silenceable Alarm and Easy-to-Read LCD Keep You Informed Around the Clock
The front-panel LCD lets you monitor important data, such as load level, power factor, voltage, battery charge and estimated runtimes. It rotates for comfortable viewing in both rack and tower configurations. The audible alarm sounds for power failure, low battery and overloads. You may silence it using the built-in switch or disable it.
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Maintains continuous 120V nominal output during brownouts and overvoltages
- Installed WEBCARDLX network interface allows you 24/7 remote access from anywhere
- Easy-to-read LCD allows real-time monitoring of voltage, battery status and other data
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- $250,000 Ultimate Lifetime Insurance
Status Indicators |
Front Panel LCD Display: |
Limited Warranty | 2 Year |
Serial Port | Yes |
EPO Port | Yes |
USB (HID Compliant) Port | Yes |
Sound Emission | 45 dB(A) |
Thermal Dissipation | 134 BTU/h |
Maximum Operating Temperature | 104°F (40°C) |
Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Energy Star | Yes |
Weight (Approximate) | 16.06 kg |
Form Factor | Rack-mountable |
Rack Height | 2U |
Height | 3.46" (88 mm) |
Width | 17.36" (441 mm) |
Depth | 12.52" (318 mm) |
Application/Usage | Hotel/Motel Management |
Network Equipment | |
Retail and Wholesale | |
Security System | |
Telecommunication | |
Wiring Closet | |
Casino | |
Digital Signage | |
Electronic | |
Gaming Console | |
High-end System Component | |
Overload Protection | Yes |
Plug/Connector Type | NEMA 5-15P |
Phase | Single Phase |
Receptacle Type | NEMA 5-15R |
EMI/RFI Noise Filter | Yes |
AVR | Yes |
Number of Battery & Surge Outlets | 6 |
Transfer Time | 4 ms |
Receptacle Detail | 6 x NEMA 5-15R |
Network Management | SNMP/Telnet/SSH |
Alarm | Overload |
UPS StartUp | |
Low Battery | |
Power Failure | |
Remote Shutdown | |
UPS Fault |
Battery Chemistry | Lead Acid |
Hot Swappable | Yes |
Backup/Run Time (Half Load) | 15 Minute |
Backup/Run Time (Full Load) | 5.30 Minute |
Battery Characteristics | Valve-regulated |
Replaceable Battery | Yes |
DC System Voltage | 24 V DC |
Typical Battery Recharge Time | 4 Hour |
Product Type | Line-interactive UPS |
Manufacturer Part Number | SMART1000RM2UN |
Manufacturer Website Address | http://www.tripplite.com |
Manufacturer | Tripp Lite |
Product Model | SMART1000RM2UN |
Product Name | SmartPro SMART1000RM2UN 1000VA Rack-mountable UPS |
Product Line | SmartPro |
Brand Name | Tripp Lite |
Input Voltage | 120 V AC |
Output Voltage | 110 V AC |
115 V AC | |
120 V AC | |
Load Capacity | 1 kVA/800 W |
Surge Energy Rating | 570 J |
Waveform Type | Pure Sine Wave |
Output Frequency | 60 Hz |
