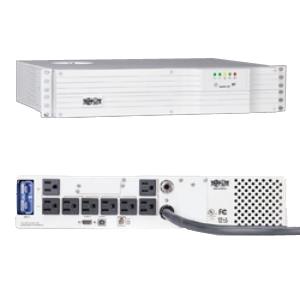

Tripp Lite SMART1500RMXL2U UPS - 1500VA/940W - 12 Minute Full Load - 8 x NEMA 5-15R

Save 22%
Tripp LiteSKU: PL5-SMART1500RMXL2U-757253-0037332120403-EN
filler

Price:
Sale price$907.99 Regular price$1,160.96

Description

Tripp Lite SMART1500RMXL2U UPS - 1500VA/940W - 12 Minute Full Load - 8 x NEMA 5-15R

Tripp Lite's SMART1500RMXL2U intelligent, line interactive rack/tower UPS system prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (2U) in a standard rack enclosure. Large internal batteries offer 30 minutes half load runtime and 12 minutes at full load, expandable with the addition of BP48V24-2U or BP48V60RT3U external battery packs. 1500VA / 940 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes a total of 8 outlets, one pair of which are individually controllable via software interface to reboot remote equipment on demand or automatically shed less significant loads to extend battery runtime for more critical equipment. Supports remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency situation. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Ships in attractive gray color scheme; includes optional use, user installable, black front bezel to alter UPS appearance to match black equipment racks. Two year warranty with $250,000 connected equipment insurance (USA & Canada only).
Features
  • Corrects under- and overvoltages from 83V to 145V
  • 8 NEMA 5-15R outlets-4 switchable via network interface
  • Network power management and control capability
  • Expandable runtime with optional external battery packs
  • 14 min. runtime at half load; 4.9 min. at full load
Status Indicators 5 front panel LEDs - Green POWER LED, Green VOLTAGE CORRECTION LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.
Maximum Operating Temperature 104°F (40°C)
Limited Warranty 3 Year
USB Yes
Total Number of Expansion Slots 1
Input Voltage 110 V AC
Output Voltage 120 V AC
Load Capacity 1.50 kVA/940 W
Network Management SNMP Manageable
Alarm On Battery
Overload
Low Battery
Additional Information
    • SMART1500RMXL2U line interactive UPS offers voltage regulation, battery support and network-grade AC surge suppression
    • Uses only 2 rack spaces (2U) in a 19 inch rack enclosure with an installed depth of only 15 inches
    • Includes mounting accessories for 4 post rackmount systems, 2 post rackmount compatible with optional 2POSTRMKIT accessory, tower compatible with optional 2-9USTAND accessory
    • 1500VA / 940 watt power handling capability; 30 minutes half load runtime / 12 minutes full load runtime
    • Extended runtime available with BP48V24-2U (limit 1) or BP48V60RT3U (multi-pack compatible) external battery packs
    • Automatic Voltage Regulation (AVR) circuits maintain usable 120V nominal without using battery power during brownouts as low as 75V and overvoltages as high as 147V
    • Includes a total of 8 NEMA5-15R outlets, 1 pair of which can be individually powered on and off via software interface to selectively reboot remote equipment or automatically shed less significant loads to extend battery runtime for more critical equipment
    • Supports 120 volt / 60 Hz applications in USA, Canada, Mexico and more; common 15 amp straight blade input plug compatible with standard NEMA 5-15R wall sockets
    • Includes 1 USB and 1 DB9 communication ports for remote monitoring of UPS and site power status
    • Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity; supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
    • PowerAlert UPS monitoring and unattended shutdown software with complete USB and DB9 cabling included
    • Supports SNMP in large network applications with optional SNMPWEBCARD internal adapter
    • Supports Tripp Lite's WatchDog software application to automatically restore unresponsive programs by restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again
    • 5 front panel LEDs and multi-function audible alarms offer status of line power, battery power, battery low/replace, voltage regulation and load level
    • Built-in cooling fan maintains optimal internal UPS temperature
    • Hot-swappable / user replaceable batteries allow on-site battery replacement while the UPS is fully installed
    • UPS battery set ships fully assembled and ready for installation, no time consuming battery connections required
    • Cold start capability enables UPS turn-on in battery mode during blackout conditions
    • UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Business) Listed
    • $250,000 Ultimate Lifetime Insurance (USA and Canada only / 2 year manufacturers product warranty
Package Contents
  • SMART1500RMXL2U UPS System
  • PowerAlert software with USB and DB9 cables
  • Mounting hardware for 4 post rackmount installation
  • Cable for Emergency Power Off interface
  • Instruction manual with warranty information
Certifications & Standards UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
Country of Origin China
Weight (Approximate) 17.24 kg
Rack Height 2U
Height 12.75" (323.85 mm)
Width 7.50" (190.50 mm)
Depth 9" (228.60 mm)
Battery Life 6 Year
Battery Chemistry Sealed Lead Acid (SLA)
Hot Swappable Yes
Backup/Run Time (Half Load) 30 Minute
Backup/Run Time (Full Load) 12 Minute
Typical Battery Recharge Time 4 Hour
Emergency Power OFF Yes
Plug/Connector Type NEMA 5-15P
Cord Length 10 ft
Receptacle Type NEMA 5-15R
Transfer Time 4 ms
Receptacle Detail 8 x NEMA 5-15R
Product Type Line-interactive UPS
Manufacturer Part Number SMART1500RMXL2U
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Name SMART1500RMXL2U UPS
Product Line SmartPro
Brand Name Tripp Lite
