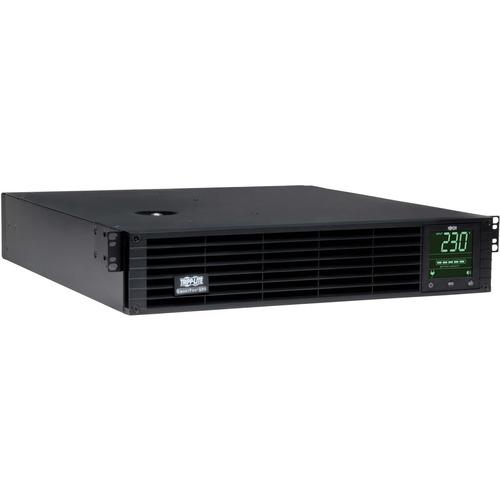

Tripp Lite SmartPro SMX1500XLRT2UN 1500VA Rack/Tower UPS - 2U Rack/Tower - AVR - 4.50 Hour Recharge - 4.90 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 8 x IEC 60320 C13
Tripp Lite SmartPro SMX1500XLRT2UN 1500VA Rack/Tower UPS - 2U Rack/Tower - AVR - 4.50 Hour Recharge - 4.90 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 8 x IEC 60320 C13
Tripp Lite SmartPro SMX1500XLRT2UN 1500VA Rack/Tower UPS - 2U Rack/Tower - AVR - 4.50 Hour Recharge - 4.90 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 8 x IEC 60320 C13
1.5kVA/1.35kW/230V Battery Backup for PC Networks, Security Systems or Digital Signage
The SmartPro® line-interactive SMX1500XLRT2UN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 230V battery backup with 0.9 power factor is ideal protection for small networks, wiring closets, security systems, telecom, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides 13.6 minutes of support at half load (675W) and 4.9 minutes at full load (1350W), allowing you to work through short power failures and giving you enough time to safely save files and shut down your system in case of a prolonged blackout. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lite's BP36V15-2U (sold separately).
WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The Java-free HTML5-based WEBCARDLX enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. WEBCARDLX allows you to use the Auto Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network devices.
8 Outlets Protect Your Connected Components
Eight C13 outlets provide battery backup, 350 joules of surge protection and voltage regulation for your crucial components. Two independently switched two-outlet load banks enable both scheduled and real-time remote rebooting and load shedding.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMX1500XLRT2UN can correct brownouts as low as 158V and overvoltages as high as 278V back to nominal 230V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Designed for High Efficiency to Help You Save Money and Protect the Environment
A 97% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Silenceable Alarm and Easy-to-Read LCD Keep You Informed Around the Clock
The front-panel LCD lets you monitor important data, such as load level, power factor, voltage, battery charge and estimated runtimes. It rotates for comfortable viewing in both rack and tower configurations. The audible alarm sounds for power failure, low battery and overloads. You may silence it using the built-in switch or disable it.
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Maintains continuous 230V nominal output during brownouts and overvoltages
- Included WEBCARDLX network interface allows you 24/7 remote access from anywhere
- Easy-to-read LCD allows real-time monitoring of voltage, battery status and other data
- 2-year limited warranty
Status Indicators |
Front Panel LCD Information And Configuration Screen: |
Limited Warranty | 2 Year |
Serial Port | Yes |
EPO Port | Yes |
USB (HID Compliant) Port | Yes |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Hot Swappable | Yes |
Backup/Run Time (Half Load) | 13.60 Minute |
Backup/Run Time (Full Load) | 4.90 Minute |
Replaceable Battery | Yes |
DC System Voltage | 36 V DC |
Typical Battery Recharge Time | 4.50 Hour |
Sound Emission | 45 dB(A) |
Thermal Dissipation | 689 BTU/h |
Maximum Operating Temperature | 104°F (40°C) |
Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
Environmental Sensors | Humidity Sensor |
Temperature Sensor |
Application/Usage | Telecommunication |
Server | |
Security System | |
Retail Building | |
Network Device | |
Mission Critical Equipment | |
Hotel/Motel Management | |
Gaming Console | |
Digital Signage | |
Casino | |
Wiring Closet | |
Overload Protection | Yes |
Plug/Connector Type | IEC 60320 C14 |
Phase | Single Phase |
Receptacle Type | IEC 60320 C13 |
EMI/RFI Noise Filter | Yes |
AVR | Yes |
Energy Saving | Green Energy-Saving |
Transfer Time | 6 ms |
Receptacle Detail | 8 x IEC 60320 C13 |
Weight (Approximate) | 19.55 kg |
Form Factor | Rack/Tower |
Rack Height | 2U |
Height | 3.50" (89 mm) |
Width | 17.40" (442 mm) |
Depth | 13.50" (343 mm) |
Network Management | SNMP/Telnet/SSH |
Alarm | Remote Shutdown |
Power Failure | |
Overload | |
Low Battery | |
UPS Fault | |
UPS StartUp |
Product Type | Line-interactive UPS |
Manufacturer Part Number | SMX1500XLRT2UN |
Manufacturer Website Address | http://www.tripplite.com |
Manufacturer | Tripp Lite |
Product Model | SMX1500XLRT2UN |
Product Name | SmartPro SMX1500XLRT2UN 1500VA Rack/Tower UPS |
Product Line | SmartPro |
Brand Name | Tripp Lite |
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
240 V AC | |
220 V AC | |
Load Capacity | 1.50 kVA/1.35 kW |
Surge Energy Rating | 350 J |
Waveform Type | Pure Sine Wave |
Output Frequency | 60 Hz |
Input Frequency | 50 Hz |
