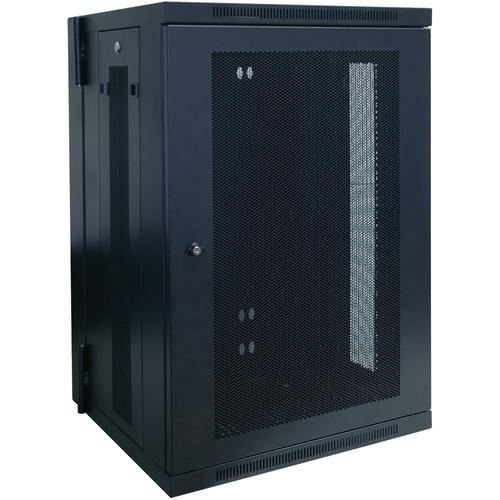

Tripp Lite SRW18US Wall mount Rack Enclosure Server Cabinet - 19" 18U Wall Mounted

Tripp LiteSKU: PL5-SRW18US-48023N-0037332154835-EN
filler

Price:
Sale price$1,391.99

Description

Tripp Lite SRW18US Wall mount Rack Enclosure Server Cabinet - 19" 18U Wall Mounted

The SRW18US SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW18US comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
Features
  • Maximum load capacity of 250 lb.
  • Swings away from wall on hinge for easy back-door access
  • Locking steel cabinet vented at sides, front, top and bottom
  • Flow-through ventilation keeps equipment cool
  • Secures 18U of 19 in. rack equipment up to 20.5 in. deep
Limited Warranty 5 Year
Additional Information
    • Adjustable mounting depths from 3" to 20.5" inches
    • Heavy duty construction to handle added leverage
    • Ventilated front door and side panels for increased airflow
    • Hinged cabinet swings away from wall bracket for easy equipment and cable access
    • Top and bottom panel cable access openings
    • Fully assembled for quick installation
Certifications & Standards
    • UL/CSA 60950-1
    • EIA-310-D
    • IEC 60297-3-100
    • IP20 Protection Rating
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Form Factor Wall Mountable
Rack Width 19" (482.60 mm)
Rack Height 18U
Height 35.60" (904.24 mm)
Width 23.60" (599.44 mm)
Depth 21.60" (548.64 mm)
Maximum Weight Capacity 63.50 kg
Product Type Rack Cabinet
Manufacturer Part Number SRW18US
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model SRW18US
Product Name SRW18US Wall mount Rack Enclosure Server Cabinet
Product Line SmartRack
Brand Name Tripp Lite
