Tripp Lite SmartRack SRWF12U38 Rack Cabinet - For Server, LAN Switch, Patch Panel, UPS, Battery Pack - 12U Rack Height x 19" (482.60 mm) Rack Width x 35" (889 mm) Rack Depth - Wall Mountable - Black Powder Coat - Steel - 181.44 kg Maximum Weight Capacity

Save 23%
Tripp LiteSKU: PL5-SRWF12U38-6621DC-0037332195852-EN
filler

Price:
Sale price$1,299.99 Regular price$1,683.41

Description

Tripp Lite SmartRack SRWF12U38 Rack Cabinet - For Server, LAN Switch, Patch Panel, UPS, Battery Pack - 12U Rack Height x 19" (482.60 mm) Rack Width x 35" (889 mm) Rack Depth - Wall Mountable - Black Powder Coat - Steel - 181.44 kg Maximum Weight Capacity

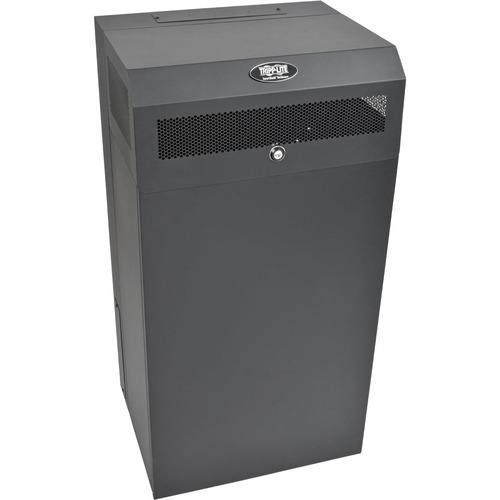

The SRWF12U38 SmartRack® 12U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices, two-post racks and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 400 pounds.

Because the low-profile cabinet mounts vertically, it extends only 16 inches from the wall while housing equipment up to 35 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 8U of rack space in the primary mounting area, it also includes a 4U mounting space at the top of the enclosure for patch panels.

The top cover and front panel are removable to allow expedient access to equipment. The cover also locks securely with the included keys to help prevent damage, tampering or theft. The vented cabinet allows air to flow freely and keep equipment cool. Convenient top, bottom and side ports allow easy cable routing.

The SRWF12U38's modular design allows you to disassemble the cabinet in minutes for wall-mounting with user-supplied hardware. Mounting holes are spaced 16 inches apart to accommodate standard wall studs. Equipment installation is easy with threaded mounting holes that support 12-24 mounting in two-post racks.

Features

Saves Valuable Workspace
  • Recommended for areas with limited floor space where you need equipment to be secure, organized and out of the way
  • Houses EIA-standard 19 in. rack equipment in 8U of space
  • Also includes 4U of mounting space at the top of the enclosure for patch panels
  • Extends only 16 in. from the wall while housing equipment up to 35 in. deep
  • Maximum load capacity of 400 lb.
Keeps Important Equipment Secure
  • Top cover locks securely to help prevent damage, tampering or theft
  • Vented cabinet keeps equipment cool
  • Convenient ports with removable covers allow cable routing through top, bottom and sides
Easy Enclosure and Equipment Installation
  • Modular design for easy disassembly and assembly
  • Wall-mounting holes spaced 16 in. apart for standard wall stud placement
  • Threaded mounting holes support 12-24 mounting in 2-post racks
  • Rack spaces marked for easy reference
Meets Payment Card Industry Standards
  • Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
Features
  • Maximum load capacity of 400 lb.
  • Locking steel cabinet vented to keep equipment cool
  • Secures 8U of 19 in. rack equipment up to 35 in. deep
  • Includes additional 4U of space for patch panels
  • Modular design for easy disassembly and assembly
Limited Warranty 5 Year
Package Contents
  • SmartRack SRWF12U38 Rack Cabinet
  • 2 x Keys
  • Owner's Manual
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Material Steel
Weight (Approximate) 30.30 kg
Color Black Powder Coat
Form Factor Wall Mountable
Rack Width 19" (482.60 mm)
Rack Height 12U
Height 38" (965.20 mm)
Width 19.69" (500.10 mm)
Depth 16.16" (410.50 mm)
Maximum Weight Capacity 181.44 kg
Rack Depth 35" (889 mm)
Application/Usage Battery Pack
LAN Switch
Patch Panel
Server
UPS
Product Type Rack Cabinet
Manufacturer Part Number SRWF12U38
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model SRWF12U38
Product Name SmartRack SRWF12U38 Rack Cabinet
Product Line SmartRack
Brand Name Tripp Lite
