StarTech.com VGA over CAT5 remote receiver for video extender - 1 x 2 - VGA - 492.13ft

StartechSKU: PL5-ST121R-61232G-0065030824323
filler

Price:
Sale price$169.99

Description

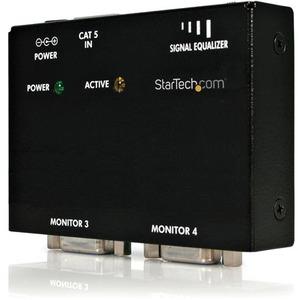

StarTech.com VGA over CAT5 remote receiver for video extender - 1 x 2 - VGA - 492.13ft

The ST121R VGA over Cat5 Video Extender Receiver is specifically designed for use as the receiver unit to the StarTech.com ST1214T 4 Port, and ST1218T 8 Port VGA over Cat5 UTP Extender transmitter units, allowing you to split and extend a single VGA source to up to four remote displays.

From the transmitter device, the VGA video signal is sent over standard 4 pair Category 5 or better UTP cable to remote monitors, each connected to an ST121R Cat 5 VGA receiver - supporting distances of up to 150 meters (500 feet).

A cost-effective video extension solution, this receiver is ideal for a wide range of environments including airports, bus depots, retail, or any large buildings where VGA video needs to be extended to long connection distances.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Features
  • Extends video cables by up to 500 ft. (150m)
  • Pure hardware design, no software or drivers required
  • Included mounting brackets
  • Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
Input Voltage 9 V DC
Limited Warranty 2 Year
Twisted Pair Cable Standard Category 5
Media Type Supported Twisted Pair
Graphics Modes VGA
Maximum Video Resolution 1024 x 768
Connectivity Technology Wired
Maximum Operating Distance 492.13 ft (150000 mm)
Number of Output Devices Supported 2
Additional Information
    • Cat5 extension design allows you to make use of existing Cat 5 or better wiring infrastructure
    • Extends the connection distance of VGA displays by up to 500 feet (150 meters) offering flexibility in the placement of your equipment
    • Included mounting brackets provide versatile mounting options such as a wall, desk, or cabinet for a clean and manageable solution
Package Contents
  • VGA Over CAT5 UTP Receiver
  • 1 x 9V Power Adapter
  • 1 x Instruction Manual
Environmentally Friendly Yes
Environmental Certification WEEE
REACH
RoHS
TAA Compliant Yes
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Number of VGA Outputs 2
VGA Out Yes
Color Black
Receiver Height 0.80" (20.32 mm)
Receiver Width 3.30" (83.82 mm)
Receiver Depth 2.60" (66.04 mm)
Receiver Weight (Approximate) 168 g
Product Type Video Extender Receiver
Manufacturer Part Number ST121R
Manufacturer Website Address http://www.startech.com
Manufacturer StarTech.com
Product Name VGA Video Extender Remote Receiver over Cat 5
Brand Name StarTech.com
