Tripp Lite SmartOnline EZ SU20KRT-1TF 20kVA Tower/Rack Mountable UPS - 14U Rack/Tower - 8 Hour Recharge - 4.30 Minute Stand-by - 208 V AC, 240 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - 2 x NEMA L6-30R, 4 x NEMA 5-15R, 8 x NEMA 5-15/20R, 8 x IEC

Tripp LiteSKU: PL5-SU20KRT-1TF-25327R-0037332158260-EN
filler

Price:
Sale price$28,447.99

Description

Tripp Lite SmartOnline EZ SU20KRT-1TF 20kVA Tower/Rack Mountable UPS - 14U Rack/Tower - 8 Hour Recharge - 4.30 Minute Stand-by - 208 V AC, 240 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - 2 x NEMA L6-30R, 4 x NEMA 5-15R, 8 x NEMA 5-15/20R, 8 x IEC 60320 C19

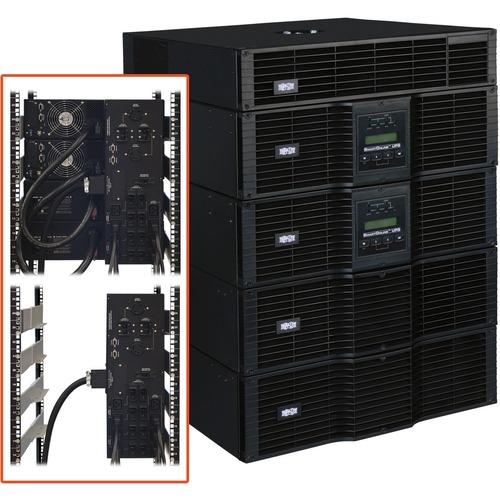

Tripp Lite SU20KRT-1TF 20,000VA / 20kVA / 18,000 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 14U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 10kVA, and non-redundant operation at loads between 10 and 20kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

Features
  • 20kVA / 20,000VA / 18,000W on-line double-conversion UPS; 0.9 power factor
  • 208/120V or 240/120V 60Hz output; 96% Efficient Economy-mode option
  • Hot-swap power and battery modules, N+1 fault tolerance at loads up to 10kVA
  • USB, RS232 & EPO ports; support for SNMP/WEB and contact-closure card options
Limited Warranty 2 Year
Backup/Run Time (Half Load) 12.50 Minute
Backup/Run Time (Full Load) 4.30 Minute
Typical Battery Recharge Time 8 Hour
Modular Slots Communications Slot
USB Yes
Serial Port Yes
Overload Protection Yes
Plug/Connector Type Hardwired
Transfer Time 0 ns
Bypass Switch Manual
Automatic
Emergency Power OFF Yes
Network Management SNMP Manageable
Shipping Weight (Approximate) 285.76 kg
Weight (Approximate) 20 kg
Form Factor Rack/Tower
Rack Height 14U
Height 5.14" (130.56 mm)
Width 17.50" (444.50 mm)
Depth 26" (660.40 mm)
Shipping Height 31.50" (800.10 mm)
Shipping Width 40" (1016 mm)
Shipping Depth 51" (1295.40 mm)
Additional Information

Output Receptacles: 8 x C19

Package Contents
  • SmartOnline EZ SU20KRT-1TF 20kVA Tower/Rack Mountable UPS
  • 2 x Power Modules
  • 2 x Battery Packs
  • 1 x Transformer
  • L6-30R / C19 Parallel PDU with Bypass Switch
  • 5 x Set of 4 post Rackmount Installation Rails
  • PowerAlert Software CD
  • USB Cable
  • Serial Cable
  • EPO Cable
Software Included PowerAlert Software
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Product Type Dual Conversion Online UPS
Manufacturer Part Number SU20KRT-1TF
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model SU20KRT-1TF
Product Name SmartOnline EZ SU20KRT-1TF 20kVA Tower/Rack Mountable UPS
Product Line SmartOnline
Product Series EZ
Brand Name Tripp Lite
Input Voltage 208 V AC
240 V AC
Output Voltage 120 V AC
208 V AC
240 V AC
Input Current 108 A
Load Capacity 20 kVA/18 kW
Output Frequency 60 Hz
Input Frequency 60 Hz
