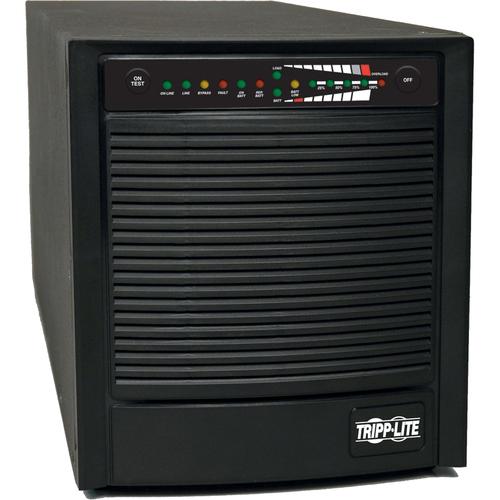

Tripp Lite SmartOnline SU3000XL UPS - 3000VA/2400W - 6 Minute Full Load - 6 x NEMA 5-20R, 1 x NEMA L5-30R
Tripp Lite SmartOnline SU3000XL UPS - 3000VA/2400W - 6 Minute Full Load - 6 x NEMA 5-20R, 1 x NEMA L5-30R
Tripp Lite SmartOnline SU3000XL UPS - 3000VA/2400W - 6 Minute Full Load - 6 x NEMA 5-20R, 1 x NEMA L5-30R
Tripp Lite's SmartOnline SU3000XL on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges in an attractive all-black tower format. Large capacity 3kVA / 2400 watt UPS continuously converts incoming AC-to-DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS systems. True sine wave output and zero transfer time offers guaranteed compatibility with all equipment types. Includes 7 UPS supported outlets with two individually switchable load banks that can be independently controlled via the UPS's software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment. Battery support can be extended with the addition of multiple external battery packs (part# BP72V9). Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. Includes Tripp Lite's PowerAlert UPS Power Management Software. Compatible with Tripp Lite's WatchDog Service Monitoring/Rebooting Software.- 3000VA / 3kVA / 2400 watt on-line double-conversion tower UPS
- 110/120V +/-2% output at 50/60Hz, high efficiency economy mode option
- Expandable runtime, Hot-swappable batteries
- USB, RS232 & EPO ports; support for SNMP/WEB card options
Status Indicators | 14 STATUS LEDs offer LINE POWER, ONLINE, BYPASS, ON BATTERY, OVERLOAD, BATTERY LOW, REPLACE BATTERY and FAULT status information. Also includes 4 LED meters for LOAD LEVEL / BATTERY LEVEL display (Battery level readout requires pressing "test" key) |
Maximum Operating Temperature | 104°F (40°C) |
Total Number of Expansion Slots | 1 |
Limited Warranty | 2 Year |
Additional Information |
|
Package Contents |
|
Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications |
Country of Origin | United States |
Battery Life | 6 Year |
Battery Chemistry | Sealed Lead Acid (SLA) |
Backup/Run Time (Half Load) | 17 Minute |
Backup/Run Time (Full Load) | 6 Minute |
Typical Battery Recharge Time | 4 Hour |
Network Management | SNMP Manageable |
Alarm | On Battery |
Overload | |
UPS Fault | |
Low Battery |
Product Type | Dual Conversion Online UPS |
Manufacturer Part Number | SU3000XL |
Manufacturer Website Address | http://www.tripplite.com |
Manufacturer | Tripp Lite |
Product Name | SmartOnline SU3000XL UPS |
Product Line | SmartOnline |
Brand Name | Tripp Lite |
Weight (Approximate) | 29.94 kg |
Form Factor | Tower |
Height | 14.75" (374.65 mm) |
Width | 5.50" (139.70 mm) |
Depth | 16.75" (425.45 mm) |
Input Voltage | 120 V AC |
110 V AC | |
120 V AC | |
110 V AC | |
Output Voltage | 120 V AC |
110 V AC | |
Load Capacity | 3 kVA/2.40 kW |
Waveform Type | Sine Wave |
Emergency Power OFF | Optional |
Plug/Connector Type | NEMA L5-30P |
Cord Length | 10 ft |
Receptacle Type | NEMA 5-15/20R |
NEMA 5-15R | |
NEMA L5-30R | |
Transfer Time | 0 ns |
Receptacle Detail | 6 x NEMA 5-15R |
4 x NEMA 5-15/20R | |
1 x NEMA L5-30R |
