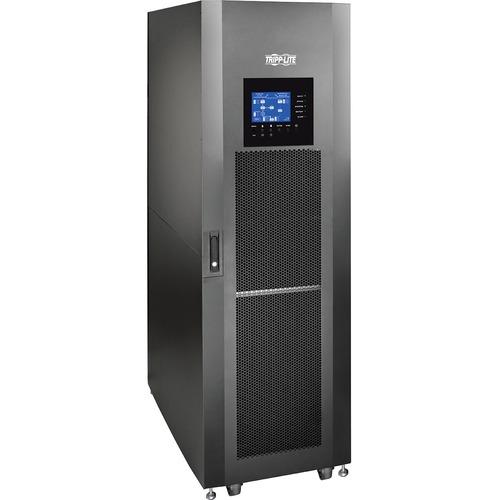

Tripp Lite SmartOnline SV140KL8P 140KVA Tower UPS - Tower - 120 V AC, 230 V AC Input - 120 V AC, 230 V AC Output

Tripp LiteSKU: PL5-SV140KL8P-2403XD-0037332196248-EN
filler

Price:
Sale price$127,319.99

Description

Tripp Lite SmartOnline SV140KL8P 140KVA Tower UPS - Tower - 120 V AC, 230 V AC Input - 120 V AC, 230 V AC Output

The SV140KL8P SmartOnline® SV Series 140kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.

The SV140KL8P includes preinstalled input, bypass and output breakers, as well as a static transfer switch (STS) and eight included 20kVA SV20PM power modules. The system is fully configured at 140kVA maximum capacity with N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load.

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.

With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 140kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets, such as Tripp Lite's BP240V370, are sold separately.

Features
  • 140kVA maximum capacity with N+1 redundancy
  • Economy mode option helps reduce operating and cooling costs
  • Pre-installed WEBCARDLX network interface for 24/7 remote access
  • DSP/IGBT technology and 1% output voltage regulation
  • Batteries not included; external battery cabinets sold separately
Network Management SNMP Manageable
Limited Warranty 1 Year
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Plug/Connector Type Hard Wire 4-wire (3P + N + G)
Phase Single Phase
Receptacle Type Hard Wire 4-wire (3P + N + E)
Receptacle Detail Hard Wire 4-wire (3P + N + E)
Product Type Dual Conversion Online UPS
Manufacturer Part Number SV140KL8P
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model SV140KL8P
Product Name SmartOnline SV140KL8P 140KVA Tower UPS
Product Line SmartOnline
Product Series SV
Brand Name Tripp Lite
Input Voltage 120 V AC
230 V AC
Output Voltage 230 V AC
120 V AC
Load Capacity 140 kVA/126 kW
Waveform Type Pure Sine Wave
Shipping Weight (Approximate) 37.19 kg
Weight (Approximate) 548.85 kg
Form Factor Tower
Height 79.13" (2009.90 mm)
Width 23.62" (599.95 mm)
Depth 43.30" (1099.82 mm)
Shipping Height 9.84" (249.94 mm)
Shipping Width 22.83" (579.88 mm)
Shipping Depth 34.25" (869.95 mm)
