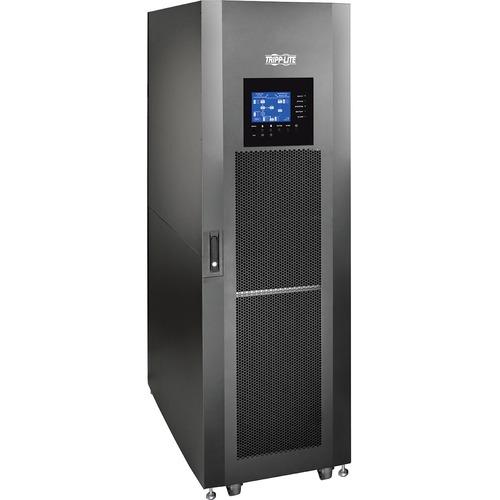

Tripp Lite SmartOnline SV20KL 20kVA Tower UPS - Tower - 120 V AC, 230 V AC Input - 120 V AC, 230 V AC Output
Tripp Lite SmartOnline SV20KL 20kVA Tower UPS - Tower - 120 V AC, 230 V AC Input - 120 V AC, 230 V AC Output
Tripp Lite SmartOnline SV20KL 20kVA Tower UPS - Tower - 120 V AC, 230 V AC Input - 120 V AC, 230 V AC Output
The SV40KL SmartOnline® SV Series 40kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.
The SV40KL includes preinstalled input, bypass and output breakers, as well as a static transfer switch (STS) and two included 20kVA SV20PM power modules. Space is included for up to six additional user-installable SV20PM power modules to accommodate increased capacity up to 140kVA with N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.
With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 40kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets, such as Tripp Lite's BP240V370, are sold separately.
- Scalable capacity up to 140kVA with N+1 redundancy
- Economy mode option helps reduce operating and cooling costs
- Pre-installed WEBCARDLX network interface for 24/7 remote access
- DSP/IGBT technology and 1% output voltage regulation
- Batteries not included; external battery cabinets sold separately
Limited Warranty | 1 Year |
Network Management | SNMP Manageable |
Telnet | |
SSH |
Package Contents |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Plug/Connector Type | Hardwired |
Phase | Three Phase |
Receptacle Type | Hardwired |
Receptacle Detail | Hardwired |
Input Voltage | 120 V AC |
230 V AC | |
Output Voltage | 230 V AC |
120 V AC | |
Load Capacity | 20 kVA/18 kW |
Waveform Type | Pure Sine Wave |
Product Type | Dual Conversion Online UPS |
Manufacturer Part Number | SV20KL |
Manufacturer Website Address | http://www.tripplite.com |
Manufacturer | Tripp Lite |
Product Model | SV20KL |
Product Name | SmartOnline SV20KL 20kVA Tower UPS |
Product Line | SmartOnline |
Product Series | SV |
Brand Name | Tripp Lite |
Shipping Weight (Approximate) | 335.50 kg |
Weight (Approximate) | 307.54 kg |
Form Factor | Tower |
Height | 79.13" (2009.90 mm) |
Width | 23.62" (599.95 mm) |
Depth | 43.30" (1099.82 mm) |
Shipping Height | 85.62" (2174.75 mm) |
Shipping Width | 29.52" (749.81 mm) |
Shipping Depth | 48.03" (1219.96 mm) |
