StarTech.com Long Range 1000 ft USB VGA KVM Over CAT5/5e CAT6 UTP Extender - KVM Console Over Ethernet for multiple servers/PC's IT Grade (SV565UTPUL) - Control a KVM or server from up to 300m (984ft) away - kvm extender - KVM Extender CAT5 - Console ext
StarTech.com Long Range 1000 ft USB VGA KVM Over CAT5/5e CAT6 UTP Extender - KVM Console Over Ethernet for multiple servers/PC's IT Grade (SV565UTPUL) - Control a KVM or server from up to 300m (984ft) away - kvm extender - KVM Extender CAT5 - Console ext
StarTech.com Long Range 1000 ft USB VGA KVM Over CAT5/5e CAT6 UTP Extender - KVM Console Over Ethernet for multiple servers/PC's IT Grade (SV565UTPUL) - Control a KVM or server from up to 300m (984ft) away - kvm extender - KVM Extender CAT5 - Console extender

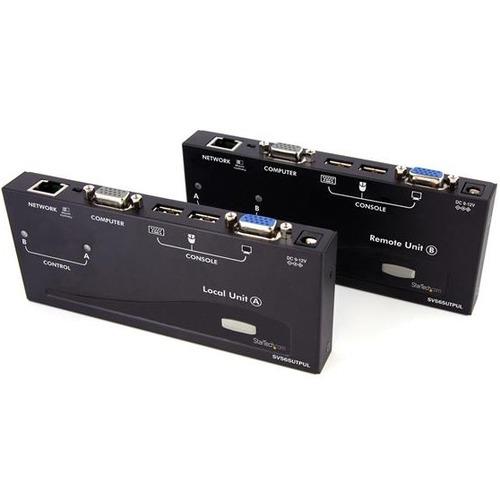

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.
You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
- USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)
- Max Resolution Limit feature caps the resolution to prevent the resolution setting from exceeding the capability of the connected display
- Compatible with CAT 5, 5e, or 6 UTP cabling
- Intuitive hotkey commands
- Hotkey controlled Equalizer(sharpness), Gain(brightness), and RGB Skew adjustments
- Supports most combo keyboard and mouse sets (including Wireless)
Limited Warranty | 3 Year |
Maximum Video Resolution | 1920 x 1200 |
Graphic Mode | WUXGA |
Input Voltage | 230 V AC |
120 V AC | |
Power Consumption | 18 W |
Input Voltage Range | 110 V AC - 240 V AC |
Product Type | KVM Console/Extender |
Manufacturer Part Number | SV565UTPUL |
Manufacturer Website Address | http://www.startech.com |
Manufacturer | StarTech.com |
Product Name | USB VGA KVM Console Extender over Cat5 UTP 1000 ft |
Brand Name | StarTech.com |
Color | Black |
Form Factor | Desktop |
Rack-mountable | |
Transmitter Height | 0.80" (20.32 mm) |
Transmitter Width | 6.20" (157.48 mm) |
Transmitter Depth | 2.80" (71.12 mm) |
Receiver Height | 0.80" (20.32 mm) |
Receiver Width | 6.20" (157.48 mm) |
Receiver Depth | 2.80" (71.12 mm) |
Transmitter Weight (Approximate) | 622 g |
Receiver Weight (Approximate) | 622 g |
USB | Yes |
VGA | Yes |
Number of Network (RJ-45) Ports | 2 |
Network (RJ-45) | Yes |
Number of USB Ports | 4 |
Number of VGA Ports | 2 |
Connectivity Technology | Wired |
Maximum Operating Distance | 984.25 ft (300000 mm) |
KVM Technology | Analog |
Number of Computers Supported | 2 |
Number of Local Users Supported | 1 |
Number of Remote Users Supported | 1 |
Package Contents |
|
Certifications & Standards |
|
Environmentally Friendly | Yes |
Environmental Certification | WEEE |
RoHS | |
REACH | |
TAA Compliant | Yes |
