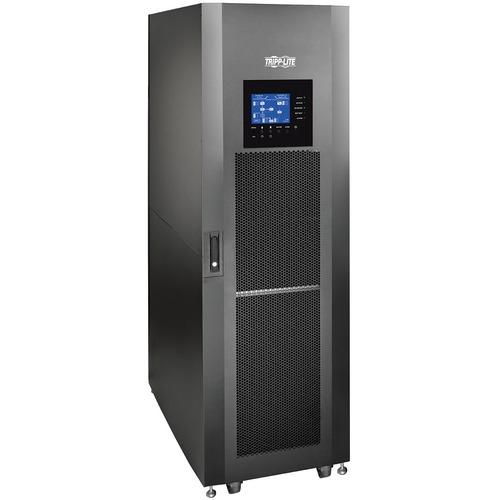

Tripp Lite SmartOnline SV80KL 80kVA Tower UPS - Tower - 120 V AC, 230 V AC Input - 120 V AC, 230 V AC Output

Save 19%
Tripp LiteSKU: PL5-SV80KL-113ZAP-EN
filler

Price:
Sale price$92,811.99 Regular price$114,351.24

Description

Tripp Lite SmartOnline SV80KL 80kVA Tower UPS - Tower - 120 V AC, 230 V AC Input - 120 V AC, 230 V AC Output

The SV80KL SmartOnline® SV Series 80kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.

The SV80KL includes preinstalled input, bypass and output breakers, as well as a static transfer switch (STS) and four included 20kVA SV20PM power modules. Space is included for up to four additional user-installable SV20PM power modules to accommodate increased capacity up to 140kVA with N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load.

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.

With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 80kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets, such as Tripp Lite's BP240V370, are sold separately.

Features
  • Scalable capacity up to 140kVA with N+1 redundancy
  • Economy mode option helps reduce operating and cooling costs
  • Pre-installed WEBCARDLX network interface for 24/7 remote access
  • DSP/IGBT technology and 1% output voltage regulation
  • Batteries not included; external battery cabinets sold separately
Limited Warranty 1 Year
Network Management SSH
Telnet
SNMP Manageable
Package Contents
  • SmartOnline SV80KL 80kVA Tower UPS
  • Pre-installed network interface
  • 4 X SV20PM 20kVA power modules
  • Owner's manual
  • DB9 Cable
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Plug/Connector Type Hardwired
Phase Three Phase
Receptacle Type Hardwired
Receptacle Detail Hardwired
Input Voltage 230 V AC
120 V AC
Output Voltage 230 V AC
120 V AC
Load Capacity 80 kVA/72 kW
Waveform Type Pure Sine Wave
Product Type Dual Conversion Online UPS
Manufacturer Part Number SV80KL
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model SV80KL
Product Name SmartOnline SV80KL 80kVA Tower UPS
Product Line SmartOnline
Product Series SV
Brand Name Tripp Lite
Shipping Weight (Approximate) 37.19 kg
Weight (Approximate) 411 kg
Form Factor Tower
Height 79.13" (2009.90 mm)
Width 23.62" (599.95 mm)
Depth 43.30" (1099.82 mm)
Shipping Height 9.84" (249.94 mm)
Shipping Width 22.83" (579.88 mm)
Shipping Depth 34.25" (869.95 mm)
