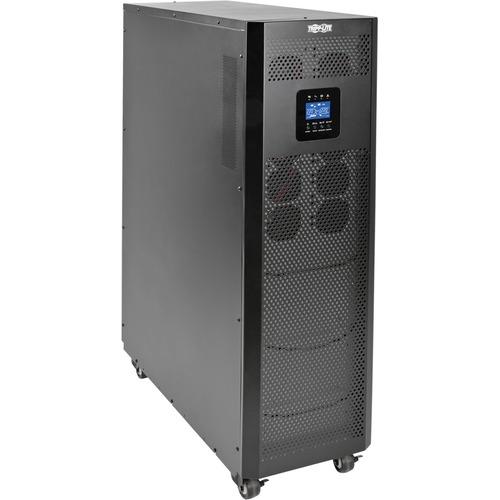

Tripp Lite SmartOnline SVT30KX 30kVA Tower UPS - Tower - 4.20 Minute Stand-by - 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC Input - 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC Output

Tripp LiteSKU: PL5-SVT30KX-822A4V-0037332192462-EN
filler

Price:
Sale price$21,910.99

Description

Tripp Lite SmartOnline SVT30KX 30kVA Tower UPS - Tower - 4.20 Minute Stand-by - 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC Input - 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC Output

The SVT30KX SmartOnline® SVTX Series 3-Phase 380/400/415V 30kVA 27kW On-Line Double-Conversion UPS with IGBT technology provides battery backup and AC power protection against power disturbances that can damage electronics or destroy data. It's recommended for critical IT or corporate infrastructure, telecom, LAN/WAN, security and emergency, financial and light industrial applications.

The SVT30KX's Voltage and Frequency Independent(VFI) design allows continuous operation at any supported voltage at either 50 or 60 Hz. Zero transfer time to battery mode ensures no disruption to the attached loads. Automatic and Manual Bypass keeps connected equipment powered even during overloads and UPS maintenance.

IGBT inverter technology produces output power with less than 2% total harmonic distortion(THD) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.

Managing the SVT30KX is simplified through the interactive front-panel LCD interface, which displays critical operating conditions and diagnostic data, such as load levels, available runtime, alarm status, battery charge, and voltage and frequency values. Four LEDs indicate bypass, line, battery and fault modes. A serial port allows connection to Tripp Lite's free local shutdown agent. A built-in card slot supports WEBCARDLX or RELAYCARDSV for network interface and remote monitoring and control. The SVT30KX's reduced size and small footprint save valuable space.
Features
  • VFI True On-Line Double-Conversion 3-Phase UPS System
  • Provides fully regulated sine wave AC output for critical telecom, network, security, financial, corporate and light industrial applications
  • +/-1% output voltage regulation in online and battery modes
  • High 0.9 power factor offers 30kVA/27kW output capacity, allowing for more connected devices
  • Selectable 380/400/415V output voltage
  • Wide input voltage window(305-478V) minimizes battery use and prolongs battery life
  • Reliable Battery Backup with Expandable Runtime
  • Supports half load for 10 min. and full load for 4 min.
  • Zero transfer time suitable for advanced network applications
  • Expandable runtime with optional external battery packs, such as Tripp Lite's BP240V135
Network Management SNMP/HTTP Remote Monitoring
Limited Warranty 1 Year
Backup/Run Time (Half Load) 9.60 Minute
Backup/Run Time (Full Load) 4.20 Minute
Package Contents
  • SmartOnline SVT30KX 30kVA Tower UPS
  • 2 x RS-232 Cables
  • 6-pin Current Sharing Cable
  • Owner's Manual
Environmentally Friendly Yes
Environmental Certification RoHS
Input Voltage 240 V AC
415 V AC
230 V AC
400 V AC
380 V AC
220 V AC
Output Voltage 400 V AC
380 V AC
240 V AC
230 V AC
220 V AC
415 V AC
Load Capacity 30 VA/27 kW
Plug/Connector Type Hardwired
Receptacle Type Hardwired
Receptacle Detail Hardwired
Weight (Approximate) 233.60 kg
Form Factor Tower
Height 39.29" (998 mm)
Width 32.01" (813 mm)
Depth 11.81" (300 mm)
Product Type Dual Conversion Online UPS
Manufacturer Part Number SVT30KX
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model SVT30KX
Product Name SmartOnline SVT30KX 30kVA Tower UPS
Product Line SmartOnline
Product Series SVTX
Brand Name Tripp Lite
