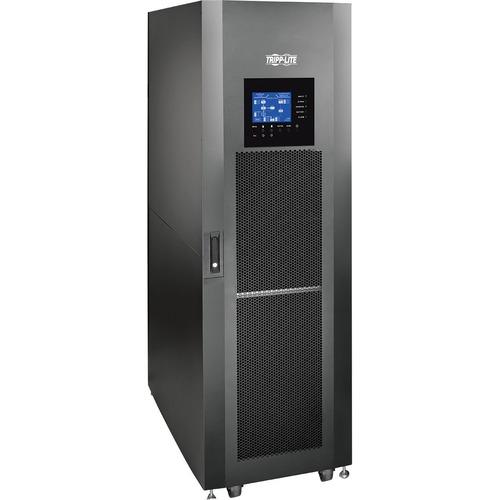

Tripp Lite SmartOnline SVX SVX120KL 210KVA Tower UPS - Tower - 230 V AC, 380 V AC, 400 V AC, 415 V AC Output

Tripp LiteSKU: PL5-SVX120KL-823A4V-EN
filler

Price:
Sale price$87,692.99

Description

Tripp Lite SmartOnline SVX SVX120KL 210KVA Tower UPS - Tower - 230 V AC, 380 V AC, 400 V AC, 415 V AC Output

Tripp Lite's SVX120KL 120kVA / 120kW SmartOnline large-chassis UPS includes installed Input, Bypass and Output breakers, a Static Transfer Switch (STS) and 4 included 30kVA SVX30PM power modules. The system includes space for up to 4 additional user installable SVX30PM power modules to accommodate increased capacity up to 210kW with N+1 fault-tolerance.

Featuring modular, scalable design with high efficiency voltage and frequency independent / VFI operation, Tripp Lite's SVX Series SmartOnline UPS systems are ideal for the protection of a wide variety of critical IT systems. Scalable, modular configuration enables UPS capacity upgrades and hot-swap power supply maintenance without costly downtime. Over 95% efficient in standard online-mode and over 99% efficient in optional economy-mode enables reduced operating and cooling costs. Unity power factor configuration provides equal kVA and kW output ratings for up to 25% more wattage capacity than common 0.8 - 0.9 power factor competing designs. Network-grade sine-wave AC output with 1% output voltage regulation and less than 1.5% output total harmonic distortion. Advanced IGBT inverter with Digital Signal Processor (DSP) technology provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing. Dual input hardwire design enables operation from one or two input power sources for enhanced system availability. N+1 fault-tolerance is supported anytime there is an "extra" SVX30PM 30kW power module installed beyond the minimum required quantity. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. UPS batteries are not included, External ±240VDC battery cabinets sold separate.

Network Management SNMP Manageable
Phase Three Phase
Weight (Approximate) 411 kg
Form Factor Tower
Height 79.13" (2009.90 mm)
Width 23.62" (599.90 mm)
Depth 43.30" (1099.80 mm)
Product Type Dual Conversion Online UPS
Manufacturer Part Number SVX120KL
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model SVX120KL
Product Name SmartOnline SVX SVX120KL 210KVA Tower UPS
Product Line SmartOnline
Product Series SVX
Brand Name Tripp Lite
Output Voltage 230 V AC
400 V AC
415 V AC
380 V AC
Load Capacity 120 kVA/120 kW
Waveform Type Pure Sine Wave
Input Voltage Range 220 V AC - 380 V AC
230 V AC - 400 V AC
240 V AC - 415 V AC
