Tripp Lite SmartOnline SVX60KS2P3B 60kVA Tower UPS - Tower - 3.50 Minute Stand-by - 380 V AC, 400 V AC, 415 V AC Output
Tripp Lite SmartOnline SVX60KS2P3B 60kVA Tower UPS - Tower - 3.50 Minute Stand-by - 380 V AC, 400 V AC, 415 V AC Output
Tripp Lite SmartOnline SVX60KS2P3B 60kVA Tower UPS - Tower - 3.50 Minute Stand-by - 380 V AC, 400 V AC, 415 V AC Output

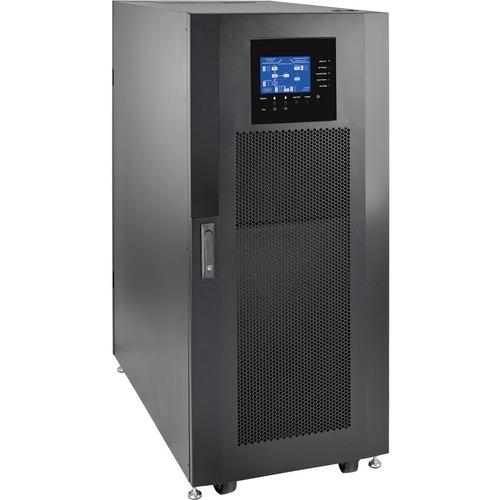

Tripp Lite's SVX60KS2P3B 60kVA/60kW SmartOnline® Small-Frame UPS includes installed input, bypass and output breakers, a static transfer switch (STS) and 2 included 30kVA SVX30PM power modules. This system supports the addition of 1 additional user-installable SVX30PM power module to accommodate increased capacity to 90kW (or 60kW with N+1). Three internal battery modules are included to fully load internal battery compartments. Additional runtime is available using any number of compatible ±240VDC external battery packs (sold separately).Featuring a modular, scalable design with high-efficiency voltage and frequency independent/VFI operation, Tripp Lite's SVX Series SmartOnline UPS systems are ideal for the protection of a wide variety of critical IT systems. Scalable, modular configuration enables UPS capacity upgrades and hot-swap power supply maintenance without costly downtime. Over 95% efficient in standard online mode and over 99% efficient in optional economy mode enables reduced operating and cooling costs. Unity power factor configuration provides equal kVA and kW output ratings for up to 25% more wattage capacity than common 0.8 - 0.9 power factor competing designs. Network-grade sine-wave AC output with 1% output voltage regulation and less than 1.5% output total harmonic distortion. Advanced IGBT inverter with Digital Signal Processor (DSP) technology provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing. Dual-input hardwire design enables operation from one or two input power sources for enhanced system availability. N+1 fault-tolerance is configurable anytime there is an "extra" SVX30PM 30kW power module installed beyond the minimum required quantity. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure.
Status Indicators |
|
Serial Port | Yes |
EPO Port | Yes |
Backup/Run Time (Half Load) | 7.50 Minute |
Backup/Run Time (Full Load) | 3.50 Minute |
Battery Characteristics | Hot-swappable |
Replaceable Battery | Yes |
DC System Voltage | 240 V DC |
Weight (Approximate) | 640.47 kg |
Form Factor | Tower |
Height | 58.07" (1475 mm) |
Width | 23.62" (600 mm) |
Depth | 43.31" (1100 mm) |
Application/Usage | IT Infrastructure |
Network | |
Phase | Three Phase |
EMI/RFI Noise Filter | Yes |
Energy Saving | Greater than 95% efficiency - GREEN UPS; High efficiency economy mode operation; Schedulable daily hours of economy mode operation |
Sound Emission | 73 dB(A) |
Thermal Dissipation | 11458 BTU/h |
Maximum Operating Temperature | 104°F (40°C) |
Maximum Operating Elevation | 3280.84 ft (1000000 mm) |
Storage Relative Humidity | 0% - 95% |
Storage Temperature | 5°F (-15°C) - 140°F (60°C) |
Network Management | SNMP Manageable |
Alarm | Battery Mode |
UPS Fault | |
UPS Alarm | |
Low Battery | |
Power Off | |
Power On |
Output Voltage | 400 V AC |
415 V AC | |
380 V AC | |
Load Capacity | 60 kVA/60 kW |
Waveform Type | Pure Sine Wave |
Output Frequency | 60 Hz |
Input Frequency | 70 Hz |
Product Type | Dual Conversion Online UPS |
Manufacturer Website Address | http://www.tripplite.com |
Manufacturer | Tripp Lite |
Product Model | SVX60KS2P3B |
Product Name | SmartOnline SVX60KS2P3B 60kVA Tower UPS |
Product Line | SmartOnline |
Product Series | SVX |
Brand Name | Tripp Lite |
