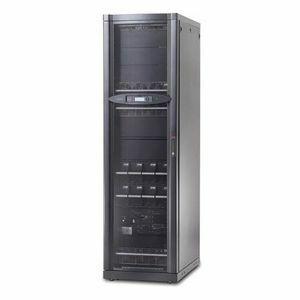

Schneider Electric APC Symmetra PX 20kW Scalable UPS - 20000VA/20000W - 3.8 Minute Full Load - 1, 1 x Screw Terminal

Schneider Electric APC Symmetra PX 20kW Scalable UPS - 20000VA/20000W - 3.8 Minute Full Load - 1, 1 x Screw Terminal

常规价格 $41,795.99 CAD
常规价格 促销价 $41,795.99 CAD
促销 售罄
结账时计算的运费
APC Symmetra PX 20kW Scalable UPS - 20000VA/20000W - 3.8 Minute Full Load - 1, 1 x Screw Terminal
Limited Warranty 1 Year
Network (RJ-45) Yes
Total Number of Expansion Slots 2
Sound Emission 64 dB(A)
Thermal Dissipation 11611 BTU/h
Maximum Operating Temperature 104°F (40°C)
Additional Information
    • Automatic Self Test
    • Battery modules connected in parallel
    • Cold-start
    • Compact Design
    • Early-warning Problem Notification
    • Easy Maintenance
    • Event logging
    • Front-access servicing
    • Full-rated Power with kVA equaling kW
    • Galvanic isolation
    • Generator Compatible
    • Hot Swap Electronics
    • Input Power Factor Correction
    • LCD AlphaNumeric Display
    • Load Meter
    • Menu-driven Operating Instructions
    • Modular Fault-tolerant Design
    • Modular-level Repair
    • Multiple System Shutdown
    • N+1 Redundancy
    • Out-of-Band Management
    • Overload Indicator
    • Pager notification
    • Programmable power event response
    • Rated for Power-Factor Corrected Loads
    • Revolutionary Modular Design for built-In Fault-Tolerance
    • Scalable Power Capacity
    • Scalable Run Time
    • Smallest footprint
    • Temperature Compensated Battery Charging
    • Wide input voltage range
Package Contents
  • User Manual
  • Web/SNMP Management Card
Certifications & Standards
    • cUL Listed
    • EN 50091-1
    • EN 50091-2
    • FCC Part 15 Class A
    • ISO 14001
    • ISO 9001
    • UL 1778
    • UL 60950
Battery Management Intelligent Battery Management
Network Management SNMP Manageable
Alarm Low Battery
On Battery
Product Type Dual Conversion Online UPS
Manufacturer Part Number SY20K40F
Manufacturer Website Address http://www.schneider-electric.com
Manufacturer Schneider Electric SA
Product Name Symmetra PX 20kW Scalable UPS
Product Line Symmetra
Product Series PX
Brand Name APC by Schneider Electric
Input Voltage 220 V AC
Output Voltage 208 V AC
Load Capacity 20 kVA/20 kW
Waveform Type Sine Wave
Bypass Switch Static
Emergency Power OFF Yes
Plug/Connector Type Hard Wire 5-wire
Receptacle Type Screw Terminal
Receptacle Detail 1 x Screw Terminal
Battery Chemistry Sealed Lead Acid (SLA)
Hot Swappable Yes
Backup/Run Time (Half Load) 14.40 Minute
Backup/Run Time (Full Load) 3.80 Minute
Battery Characteristics Maintenance-free
Typical Battery Recharge Time 3 Hour
Weight (Approximate) 528.44 kg
Color Black
Rack Height 42U
Height 82" (2082.80 mm)
Width 24" (609.60 mm)
Depth 35.50" (901.70 mm)
