Descripción
Marketing Information

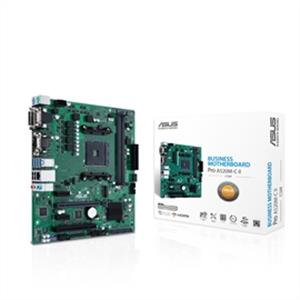

Micro-ATX A520 business motherboard with enhanced security, reliability and manageability
AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
ASUS LPC debug header for more efficient troubleshooting
Supports SMBUS header that connects to a DASH LAN for remote IT management
Innovative moisture-resistant coating to protect the motherboard from harsh environments
Event log for capturing and managing detailed system information
Commercial BIOS kit to make customization faster and more efficient
ASUS Control Center Express(ACCE) to make IT endpoint management easier
AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
ASUS LPC debug header for more efficient troubleshooting
Supports SMBUS header that connects to a DASH LAN for remote IT management
Innovative moisture-resistant coating to protect the motherboard from harsh environments
Event log for capturing and managing detailed system information
Commercial BIOS kit to make customization faster and more efficient
ASUS Control Center Express(ACCE) to make IT endpoint management easier
Detail Specifications
CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors Refer to www.asus.com for CPU support list. |
Chipset AMD A520 Chipset |
Memory DDR4 4866(O.C.)/4600(O.C.)/4466(O.C.)/4400(O.C.)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/346(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory Dual Channel Memory Architecture ECC memory (ECC mode) support varies by CPU. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
Graphics 1 x DisplayPort 1.2 1 x D-Sub 1 x DVI-D Graphics specifications may vary between CPU types. The DVI-D port and the DisplayPort cannot work at the same time. Only the DVI-D port functions when the two ports are both connected. |
Expansion Slots 1 x PCIe 3.0 x16 (x16 mode) AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots 1 x PCI slot |
Storage Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes) AMD A520 Chipset 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard |
USB Rear USB:Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
Intrernal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPC debug header 1 x LPT header 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
Special Features ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box Headers Bespoke Motherboard Design and Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection TPM 2.0 IC Onboard |
Software Features ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
BIOS 128 Mb Flash ROM, UEFI AMI BIOS |
Manageability WOL by PME, PXE |
Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User manual |
Form Factor microATX 24.4cm x 22.9cm |
Item Dimension (L"xW"xH") 11 x 11 x 3 Weight 3 lbs Warranty Information 1 Years |
