Specifications / Additional Information

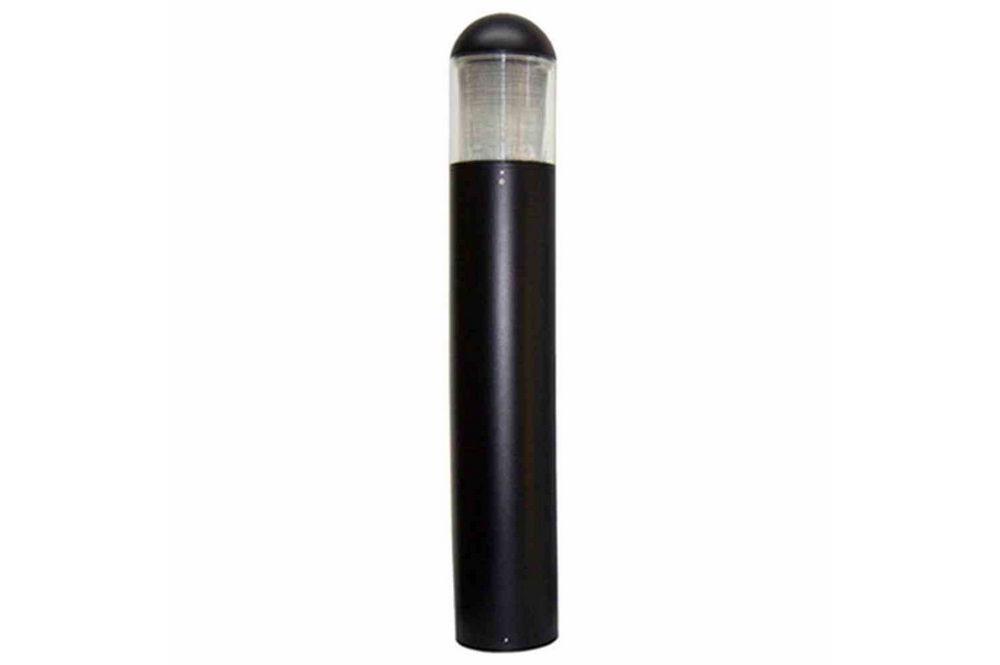

ATRL-BLD-RND-TD-5L-T5 Curved Dome Top LED Bollard | Ratings/Approvals |
Lamp Type: LED | Listed for United States & Canada |
Dimensions: 41 5/8"-H x 7"-Diameter | Approved for Wet Locations |
Weight: - | Electronic Driver |
Voltage: 120-277V AC @ 50/60 Hz | Curved Dome Top Bollard |
Total Watts: 15W |  |
Lumens: 2,089 (Nominal) 1,022 (Delivered) @ 5000K | |
Luminous Efficacy: 68.13 Lm/W @ 5000k | |
Life Expectancy: 50,000+ hours | |
Light Color: Cool White | |
Color Temperature: 3000K, 4000K and 5000K | |
Beam Angle: Type V | |
Color Rendering Index: 83 CRI | |
Operating Temp Range: -40ºC to +40ºC | |
Housing Material: Extruded Aluminum | |
Finish: Powder Coated Over Chromate Conversion Coating | |
Housing Color: Bronze, Black or White | |
Lens Material: Clear Polycarbonate | |
Mount: Flush Surface Mounting With 8" Anchor Bolts |
The ATRL-BLD-RND-TD-5L-T5 is a curved dome top LED bollard, suitable to illuminate outdoor walkways, steps, pathways and parking lots, as well as provide physical protection from and visible barriers for vehicles. This IP65 rated round bollard has a standard 5,000K color temperature with a clear polycarbonate lens. The fixture delivers 1,022 lumens in a Type V distribution with a Type 5 clear prismatic borosilicate glass refractor. This aluminum vandal-resistant housed bollard features an electronic driver, which runs on 120-277V AC @ 50/60 Hz. This bollard is listed for United States and Canada and approved for wet locations. The ATRL-BLD-RND-TD-5L-T5 produces 15 watts of Type V light distribution, which produces light in a circular pattern with the same intensity at all angles, making this bollard ideal for the center of roadways, parkway islands and intersections, as well as larger commercial parking lots and areas where evenly distributed light is needed. The prismatic borosilicate glass refractor is highly efficient and has high efficacy and broad intense light. This durable LED bollard operates on 120-277V AC @ 50/60 Hz with color temperatures of 3,000K, 4,000K and 5,000K. The LED bulbs have a rated life span of 50,000 hours and a CRI of 83. For maximum control the bollard LED array includes an electronic driver, which is located in a sealed internal driver tray for security and easy maintenance. This durable dome top bollard features flat top housing constructed of extruded aluminum with a powder coating available in bronze, black, or white finishes, over a corrosion-resistant chromate conversion coating. The bollard has a flush mounting base and includes a mounting kit with 8†anchor bolts, which are drilled into the ground to secure the bollard down and provide vandal-resistance. It is IP65 rated, resistant to dust and protected against the corrosive effects of water jet wash-downs. The ATRL-BLD-RND-TD-5L-T5 can operate in temperatures -40ºC to +40ºC. Type V Distribution: Type V light distribution projects light in a circular symmetry, with 360 degrees of equal intensity. Type III distribution is ideal for lighting the centers of roadways, parkways and intersections, as well as larger commercial parking lots. Type V fixtures should be mounted in the center of the space requiring illumination. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Mounting: The ATRL-BLD-RND-TD-5L-T5 includes a mounting kit with 8? vandal-resistant anchor bolts. Applications: Walkways, buildings, perimeter lighting, commercial lighting, post lighting, directional lighting, outdoor illumination, upgrading (from CFLs to LEDs), background lighting, general area lighting, residential lighting, landscape lighting and more. |
