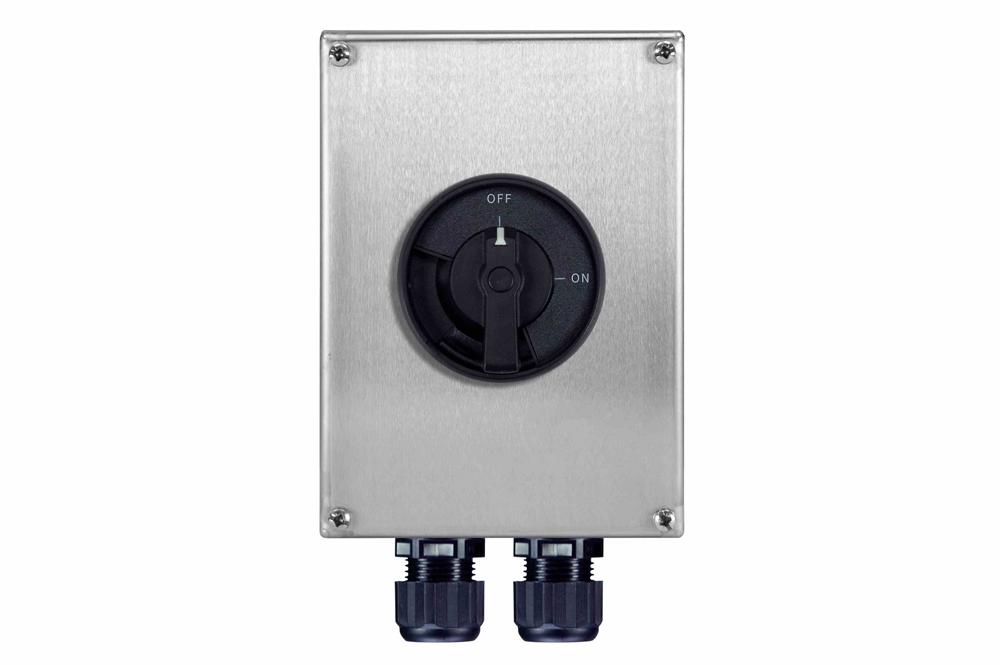

16A Explosion Proof Non-fused Disconnect Switch Isolator - 415V, 50Hz - (1) NO Aux Contact - Stainless Steel - ATEX Rated, IP66

LARSON ELECTRONICSSKU: PL3-ATEX-EPCS-SS.EP-NFDS-415V-3P-16A-AUX.1-R1
filler

Precio:
Precio de venta$1,812.00

Descripción

Specifications / Additional Information
ATEX-EPCS-SS.EP-NFDS-415V-3P-16A-AUX.1-R1 Flameproof Isolator Ratings/Approvals
Listing: European Union, International ATEX Rated
Unit Type: Explosion Proof Non-fused Disconnect Ex db eb IIC T5 Gb
Dimensions: 6.29" x 4.72" x 3.58" Ex tb IIIC T95℃ Db
Weight: - Zones 1 and 2/Zones 21 and 22
Voltage: 415V AC, 50 Hz IP66
Rated Current: 16A Locking Operating Handle
Poles: 3-pole
Auxiliary Contact: (1) NO
Earthing: M6
Operating Temperature: -55℃ to +60℃
Enclosure Material: 316L Stainless Steel
Enclosure Finish: Electro Polish
Cable Gland Material: Nickel Plated Brass
Mount: Surface
Wiring: -
Cable Entry (Hubs): (3) M20
Cable OD: -
' Product Overview '
The Larson Electronics ATEX-EPCS-SS.EP-NFDS-415V-3P-16A-AUX.1-R1 Explosion Proof Non-fused Disconnect Switch Isolator is designed for use in ATEX rated combustible facilities. This 3-pole isolator is rated at 16 amps and 415V AC, 50Hz. The IP66 rated flameproof disconnect is protected by a 316L stainless steel enclosure with an electro polish finish. The ATEX-EPCS-SS.EP-NFDS-415V-3P-16A-AUX.1-R1 is a durable explosion proof disconnect designed for ATEX rated work sites. This flameproof isolator operates on 415V AC, 50Hz and is rated at 16 amps. The 3-pole non-fused disconnect contains one, normally open auxiliary contact. This explosion proof system is constructed of 316L stainless steel, with an electro polish finish. The cable gland is made of nickel plated brass. Suitable for operating temperatures ranging between -55℃ to +60℃, this IP66 rated station comes with an M6 earthing screw. The flameproof device can be used in Zone 1 and 2, as well as Zone 21 and 22 rated facilities. Hubs: The ATEX-EPCS-SS.EP-NFDS-415V-3P-16A-AUX.1-R1 contains three, M20 hubs for completing cable entries. Mounting: The flameproof isolator is compatible with surface mount configurations.
Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers and more.
