Flameproof Low Pressure Fan - 2000 CFM - 400V 3PH, 60 Hz - 1450 RPM - ATEX Rated - T4

LARSON ELECTRONICSSKU: PL3-ATEX-EPF-LPSM-12-2K.CFM-3P-400V.60HZ
filler

Precio:
Precio de venta$3,880.00

Descripción

Specifications / Additional Information
ATEX-EPF-LPSM-12-2K.CFM-3P-400V.60HZ Flameproof Low Pressure Fan - 2000 CFM Ratings
Listing: European Union, International ATEX Rated
Type: Low Pressure Industrial Fan Ex d IIB T4
Dimensions: 11.81" x 11.81" (300mm x 300mm)
Weight: -
Voltage: 400V AC, 60 Hz
Phase: Three Phase
CFM: 2000
Rotations Per Minute (RPM): 1450
Temperature Rating: T4
Materials: - Intl: 1-214-616-6180
Mounting: Wall Mount via (4) Mounting Holes
Hub Size: 3/4" NPT
' Product Overview '

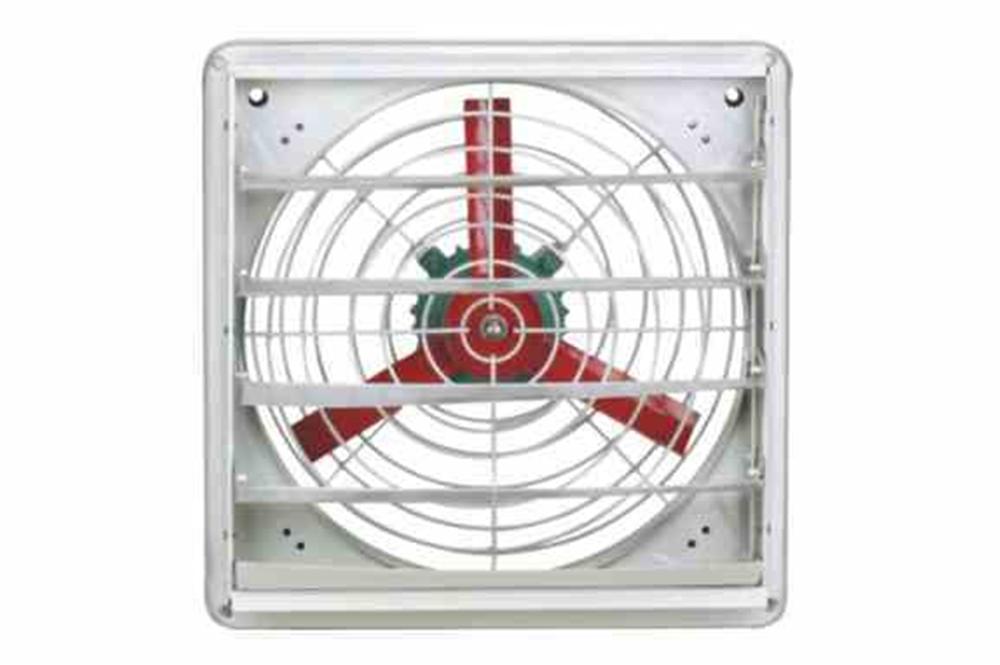

The ATEX-EPF-LPSM-12-2K.CFM-3P-400V.60HZ from Larson Electronics is a Flameproof Low Pressure Fan designed for combustible, ATEX rated sites. Equipped with a T4 rating, the explosion proof unit provides 2,000 CFM of output @ 1,450 RPM. The wall-mount fan operates with three-phase 400V AC, 60 Hz and comes with a 3/4" NPT hub for wiring connections. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT* The ATEX-EPF-LPSM-12-2K.CFM-3P-400V.60HZ is suitable for robust air flow in ATEX rated environments. The flameproof low pressure fan is compatible with three-phase 400V AC, 60 Hz. This T4-rated unit offers 2,000 CFM at a rate of 1,450 RPM. The flameproof fan features a 3/4" NPT hub for cable entries and electrical connections. Mount: The ATEX-EPF-LPSM-12-2K.CFM-3P-400V.60HZ contains four openings located at every corner of the unit for wall mounting applications. Applications: Air circulation, oil refineries, grain mills, chemical plants, welding shops, extraction rooms, vent systems, battery changing areas and more.
