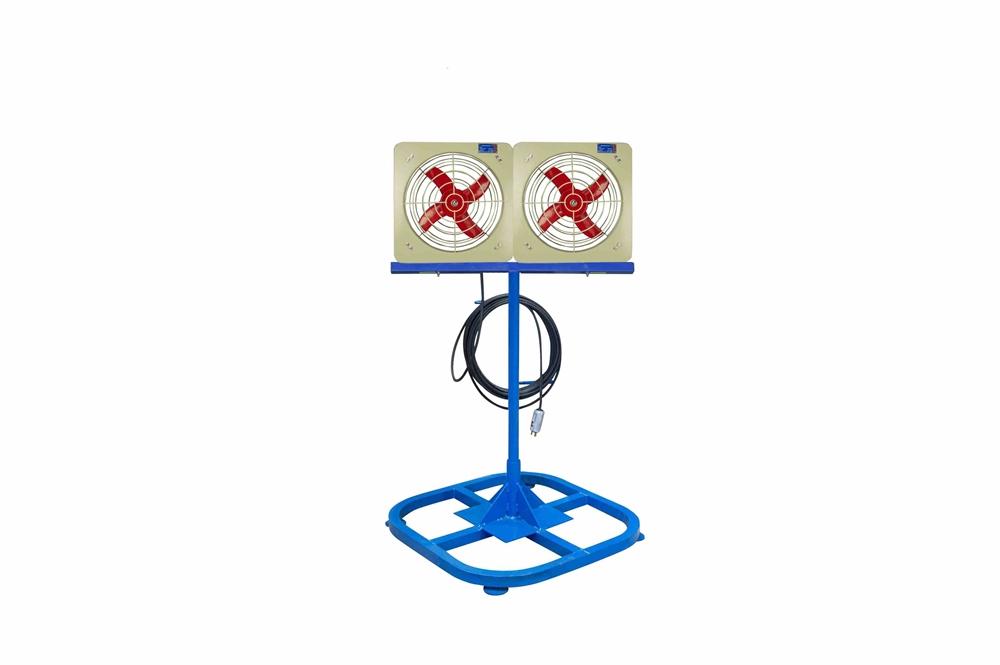

(2) 350mm Electric Explosion Proof Fans on Stand - 2000 CFM & 1450 RPM Per Fan - Pedestal Mount - ATEX Rated - 220V, 50Hz - 50' Cord w/ 16A EXP Pin/Sleeve Cord Cap

LARSON ELECTRONICSSKU: PL3-ATEX-EPF-SM-12-2X-220V.50HZ-CE16A
filler

Precio:
Precio de venta$5,894.00

Descripción

Specifications / Additional Information
ATEX-EPF-SM-12-2X-220V.50HZ-CE16A ATEX-Rated Hazardous Location Fan Ratings
Listing: European Union, International ATEX Rated
Unit Type: Hazardous Location Fan (Circular Pedestal) Ex d IIB T4
Fan Quantity: (2)
Fan Dimensions: 350mm (11.81") x 350mm (11.81")
Weight: -
Voltage: 220 V, 50 Hz
Amperage (Per Fan): 3.2 A @ 220 V
In-Rush Amperage (Per Fan): 4.8 A @ 220 V
Phase: 1
Total Cubic Feet per Minute (CFM): 4,000 (2,000 Per Fan)
Rotations Per Minute (RPM): 1,450 Per Fan Special Orders - Requirements
Blade Material: Aluminum
Fan Material/Finish: Powder Coated Steel Toll Free: 1-800-369-6671
Wiring: 50' 16/3 Cable with 16A Explosion Proof Cord Cap Intl: 1-214-616-6180
Cord Cap: 2P3W 16A Pin/Sleeve Cord Cap, 6H, 250V Fax: 1-903-498-3364
Mounting: Pedestal E-mail:
' Product Overview '
Made in Texas The ATEX-EPF-SM-12-2X-220V.50HZ-CE16A from Larson Electronics is a Hazardous Location Pedestal Fan that is designed as a spot cooling device for use in combustible, ATEX rated sites. This ATEX fan is rated for use in atmospheres that include flammable or explosive vapors, gas, or dusts. The ATEX-EPF-SM-12-2X-220V.50HZ-CE16A features two 350mm (11.81") x 350mm (11.81") circulation fans and comes with a 50' 16/3 SOOW cable and an IEC 60309 ATEX/IEC Ex rated 16 amp pin/sleeve cord cap for connection to power sources. This cooling device operates on 220 V AC, 50 Hz voltage. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT* This hazardous location fan is equipped with a robust design that is intended to minimize ignition or explosion in the applicable hazardous environment. It is important to note that no fan can be completely explosion proof. However, the ATEX-EPF-SM-12-2X-220V.50HZ-CE16A hazardous location fan has all the design elements that minimize that risk including aluminum blades and a thermally protected, maintenance free 1/2 HP motor. Each fan on this hazardous location pedestal cooling device measures 350mm (11.81") x 350mm (11.81") and generates over 1,450 RPM for efficient spot cooling. The ATEX-EPF-SM-12-2X-220V.50HZ-CE16A fan operates on 220 V AC, 50 Hz voltage. The powder coated steel fan guards offer corrosion resistance and a high degree of durability while the heavy-duty pedestal stand offers a sturdy base. Wiring/Cord Cap: The Larson Electronics ATEX-EPF-SM-12-2X-220V.50HZ-CE16A hazardous location fan is equipped with 50 feet of 16/3 chemical and abrasion resistant SOOW cord and a hazardous location 2-pole 3-wire pin and sleeve plug compatible with our HLO-EX-16A-2P3W hazardous location power receptacles and other 16A IEC 60309 outlets. This plug is rated for 16 amps and is suitable for EX II 2 G, EEx ed IIC T6, Ex II 2 D IP 66 T80°C, and IP66 rated. This hazardous location plug features polyamide construction, recessed brass pins, a 16 amp current rating, and offered in voltage ratings of 200-250 V AC. Applications: Hazardous locations, industrial sites, oil and gas facilities, processing plants, construction, aerospace facilities, indoor/outdoor cooling systems and more.
