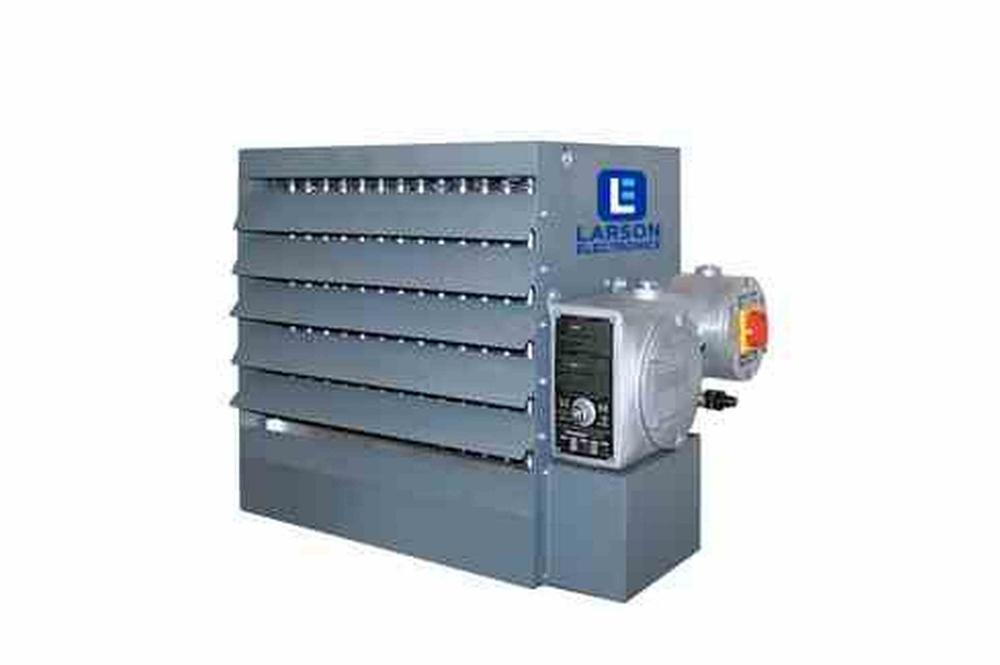

10000W Flameproof Heater - 400V 3PH, 50Hz - 1500 CFM - Thermostat - ATEX Rated Forced Fan Heater

LARSON ELECTRONICSSKU: PL3-ATEX-EPH-FH-T3B-10KW-400.3P.50HZ
filler

Precio:
Precio de venta$56,445.99

Descripción

Specifications / Additional Information
ATEX-EPH-FH-T3B-10KW-400.3P.50HZ Flameproof ATEX-rated Fan Ratings/Features
Listing: ATEX Rated Zone 1 and 2, Groups IIA and IIB
Unit Type: Flameproof Forced Fan Type Heater ATEX II 2 G, EX d IIB T4
Dimensions: 22.5" x 17.75" x 21" T4 Temperature rating
Weight: -
Motor Voltage: 400V AC, 50Hz
Control Voltage: 24V
Phase: 3PH
Watts: 10,000W
BTUs: 34,150
Amps: 25A
CFM: 1500
Air Throw: 40`
Internal Thermostat: 50-90°F (24V)
Temperature Rating/Rise: T4/16.5°F
Materials: Aluminum, Stainless Steel
Finish: Powder Coated Epoxy Paint Finish
Mount: -
Recommended Mounting Height: 10`
Color: Gray
' Product Overview '
The Larson Electronics ATEX-EPH-FH-T3B-10KW-400.3P.50HZ Flameproof Fan provides active heating in ATEX-rated and cold-temperature work sites. This 10,000-watt forced fan heater is compatible with three-phase 400V, 50Hz. Equipped with an internal thermostat, the unit features an airflow rate of 1500 CFM (40` air throw). The ATEX-EPH-FH-T3B-10KW-400.3P.50HZ is suitable for maintaining adequate temperatures in ATEX-rated sites. This 10,000-watt fan forced heater operates on three-phase 400V, 50Hz with 24V control voltage. The 25-amp rated unit supports an airflow rate of 1500 CFM, capable of throwing air as far as 40 feet. Operators may access a 24V internal thermostat inside the heater with a range of 50-90°F. This T4 temperature-rated fan features guard shields to protect internal, moving parts. The flameproof fan forced heater is constructed of 14 gauge steel and aluminum with stainless steel/aluminum pressure relief valves. The unit is rated for 6,000 cycles of service. Versatile louvers allow operators to control the direction of air leaving the fan in real-time. For protection from freeze damage (up to -45° C), the unit utilizes a Ethylene Glycol to water mixture as a heat transfer fluid inside the heater core. Mounting: The recommended mounting height for this flameproof unit is 10 feet. Applications: Heating, manufacturing plants, chemical processing, cold-temperature facilities, farming operations, agricultural sites, flour processing, grain silos and more.
