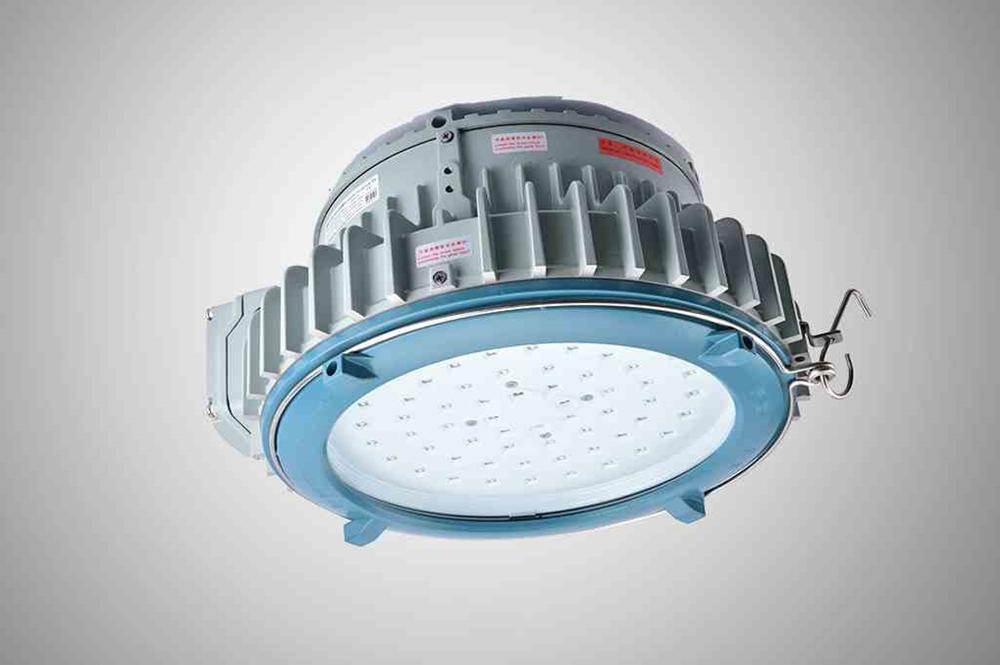

90W Flameproof High Bay LED Fixture - 100-250V AC 50/60Hz - 7767 lms, Wall Bracket Mount - ATEX/IECEx

LARSON ELECTRONICSSKU: PL3-ATEX-EPL-AE.EX-HB-90W-WLM
filler

Precio:
Precio de venta$3,760.00

Descripción

Specifications / Additional Information
ATEX-EPL-AE.EX-HB-90W-TRN High Bay LED Light Ratings/Approvals
Listing: NRTL Listed for European and International Use Approved for Zone 1 and Zone 2
Lamp Technology: LED Approved for Zone 21 and Zone 22
Dimensions: 22.87"-OD x 23.42"-L ATEX EX II 2GD
Weight: 26.5 lbs Ex db eb op is IIC T5/T4 Gb
Voltage: 100-250V AC, 50/60 Hz Ex tb III C T95°C/T130°C Db
Total Watts: 90W -40 °C ≤ Ta ≤ + 40°C / + 55 °C
Lumens: 7,767 NRTL Certified to EN 60079
Luminous Efficacy: 86.3 Lm/W NRTL Certified to IEC 60079
Lamp Life: 50,000+ Hours IECEx: IECEx CNEX 17.0001X
Color Temp: - ATEX: CNEx 16 ATEX 0010X
Color Rendering Index: - IP66
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: 40° Wide Spot, 60° Narrow Flood, 120° Wide Flood or 85° x 135° Aisle Lighter
Lighting Configuration: Flood Pattern
Recommended Mounting Height: <5M (120°), 6-8M (60°), 8-12M (85° x 135°), or 8-12M (40°)
Power Factor: -
Amps:  -
Ambient Operating Temp Range: -40° C to +55°C
Operating Temp Rating: T6
Housing Material: Die Cast Aluminum Alloy
Housing Finish: Epoxy Resin Powder
Lens Material: Toughened Glass
Mounting: Wall Bracket Mount
Cable Diameter: 8-17mm
Wiring Hub: (1) M25 x 1.5 Molded Plastic w/ Stopping Plug
' Product Overview '
The Larson Electronics ATEX-EPL-AE.EX-HB-90W-TRN Explosion Proof High Bay LED Light is approved for ATEX/IECEx rated environments. This LED unit is designed for installation in locations where flammable gases, vapors and liquids, combustible dusts, and/or ignitable fibers and flyings exist or have the potential to exist. Protected by a die-cast aluminum alloy housing, the IP66 rated fixture operates on 100-250V AC, 50/60Hz. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The ATEX-EPL-AE.EX-HB-90W-TRN hazardous area light is the perfect upgrade replacement for traditional metal halide lamps. Suitable for extreme temperatures, the flameproof LED light delivers a powerful 7,767 lumens and high chromaticity for excellent color rendering while drawing only 90 watts. Designed with versatility in mind, this explosion proof hazardous area light runs on 100-250V AC, 50/60 Hz. The LED lamp is offered with the following beam angle configurations: 40° Wide Spot, 60° Narrow Flood, 120° Wide Flood or 85° x 135° Aisle Lighter. Suitable for ATEX/IECEx rated sites, the explosion proof LED lamp is protected by a die-cast aluminum alloy housing with an epoxy resin powder finish for added durability. The lens is made out of toughened glass. All external hardware consists of stainless steel components. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied. With LED lighting technology, there is no warm up time or cool down time before re-striking. Rather, LEDs provide instant illumination when powered on, making them more dependable and convenient than halide or incandescent lighting methods. By nature, LED light sources run significantly cooler than metal halide lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional halide lighting. This internal driver provides the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Hubs: Cable entry is facilitated by one M25 x 1.5 molded plastic hub with a stopping plug. This unit accepts a cable diameter range of 8-17mm (rubber coated and armored cable wiring) for connection to terminals. Mount: This explosion proof high bay LED light fixture comes standard with a wall-mount configuration. This mounting component extends the fixture up to 2.75" from a flat, vertical mounting surface. Spacing between the mounting component and LED fixture's fins, which are located at the back of the unit, streamline cool operation. This wall-mounting solution is ideal for illumination directly above busy sections of facilities, work areas, doorways and more. Additionally, the mounting configuration can facilitate accurate light placement over control stations, switchboards, panels and segregated sections of work sites.We also offer 25° stanchions, 90° stanchions, Trunnion bracket, and street light mount options.
