Flameproof Buzzer Alarm - 10-28V AC/DC - 60 dB @ 12" - ATEX/IECEx - IP66

LARSON ELECTRONICSSKU: PL3-ATEX-EPL-BZ-BLK-PNL-1224
filler

Precio:
Precio de venta$890.00

Descripción

Specifications / Additional Information
ATEX-EPL-BZ-BLK-PNL-1224 Flameproof Buzzer Alarm Ratings
Listing: European Union, International ATEX/IECEx Rated
Dimensions: 5.8"- L x 1.96" OD Ex Zone 1 & Zone 2
Weight: 0.34 lbs Ex Zone 21 & Zone 22
Voltage: 12-24V AC/DC (10V-28V AC/DC) Ex eb ib mb IIC T4 Gb
Frequency: 50/60 Hz Ex tb IIIC T130°C Db
Total Watts: - Ex II 2 G D eb ib mb IIC T4 Gb
Sound Level: 60 dB @ 12" IP66
Ambient Temp: -40°C to +45°C ATEX EPT 16 ATEX 2404 U
Temp Rating: T4 IECEx EUT 19.0003X
Housing Material: Polyamide
Housing Finish: -
Lens Material: -
Mounting: Panel Mount - 1.2" (30.6mm) Mounting Pitch
Connections: Terminals (2.5mm)
Cable Entry OD: 0.21" - 0.51" (5.5mm to 13mm)
Color: Black
' Product Overview '

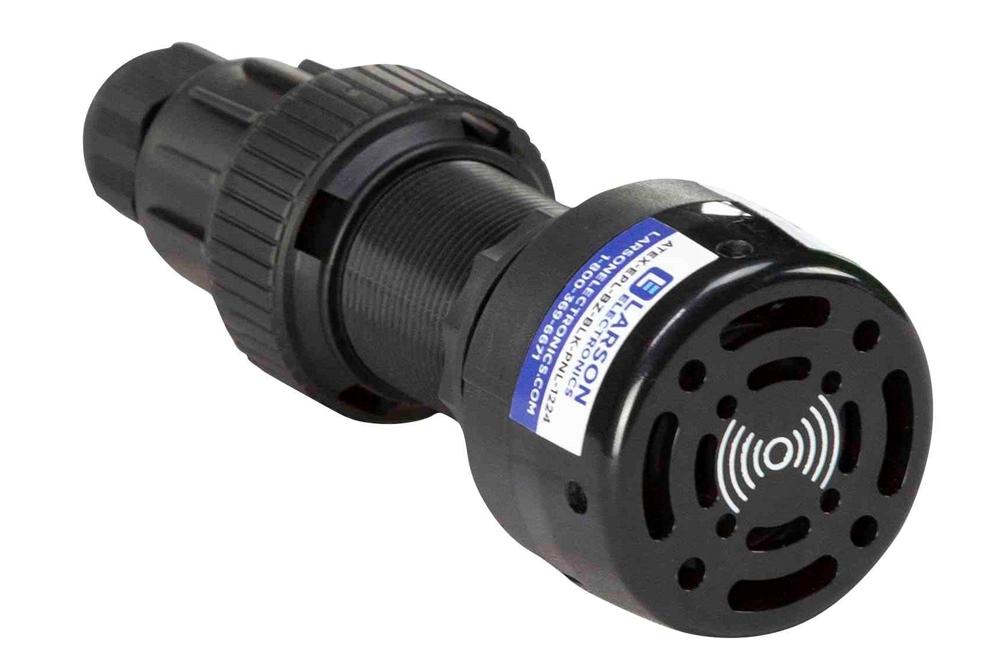

The Larson Electronics ATEX-EPL-BZ-BLK-PNL-1224 Flameproof Buzzer Alarm offers audible notification in ATEX/IECEx rated explosive environments. This device provides 60 dB sound output during operation. Constructed of polyamide, the flameproof unit is IP66 rated. The flameproof buzzer alarm is designed for Zone 1 & Zone 2 and Zone 21 & Zone 22 rated combustible sites. This low-voltage device operates on 12V and 24V AC/DC (10V-28V AC/DC) @ 50/60 Hz. When in use, the buzzer alarm provides 60dB of output at a distance of 12" (30 cm). This flameproof unit is constructed of polyamide to deter sparking. An IP66 rating ensures waterproof protection in ATEX/IECEx rated facilities. Wiring: The ATEX-EPL-BZ-BLK-PNL-1224 is equipped with terminals (2.5mm) for completing electrical connections. Cable entry outer diameter range is 0.21" - 0.51" (5.5mm to 13mm). Mounting: This flameproof buzzer alarm is compatible with panel mounting applications.
