Explosion Proof Phone w/ Dial Pad - 18 Buttons, Analog - Stainless Steel Cord - Black/ATEX Rated

LARSON ELECTRONICSSKU: PL3-ATEX-EPPH-NM-ALG-18K-212
filler

Precio:
Precio de venta$5,906.00

Descripción

Specifications / Additional Information
ATEX-EPPH-NM-ALG-18K-212 ATEX Rated Telephone Ratings/Approvals
Listing: NRTL Listed for International; ATEX Rated Ex II 2 G/Ex II 2GD ATEX Certified
Phone Type: Standard Analog IP66
Dimensions: 11.5" x 7.5" x 5.5" Volume Control
Weight: 7 lbs Noise Canceling
Voltage: - Weatherproof
Power: From Telephone Line
Dialing: LD (Pulse) or DTMF (Tone) - Switchable
Ringer Level: Shrill Warble Tone - >90 dBA @ 3.2 feet
Integral Ring Detector: Contact Closure Following the Ringing Cadence, Rated at 230V AC, 3A rms
Keypad: 18 Buttons - Standard Numerical Keypad w/ (3) Direct Dial Buttons - M1, M2, M3; S (Store), R (Recall) and LR (Last Number Redial)
Time Out: Fixed Call Maximum Time Limit to 7 Minutes from Lifting Handset - User Selectable ON or OFF
Recall: Internally Switchable from Earth Loop Recall (600ms Pulse) and Timed Break Recall 100ms, 250ms or 600ms
Hookswitch: Electronic/magnetic - No Visible Moving Parts
Isolated Hookswitch Sensor: Additional Contact Rated at 230V AC, 150mA rms
Operating Temperature: -20°C to +60°C
Relative Humidity: Up to 95% (Non-condensing)
Surface Resistance: <10°Î©
Materials: Carbon Loaded Glass-filled Polyester (Phone), Polycarbonate (Handset)
Handset Cord: Curly
Mounting: Wall Mount
Wiring/Connection: 2-wire Telephone Line, FXS Ports, Analog PABX Lines, PTSN
Parallel Terminal Block: Duplicated Line Terminals
Wiring Hub: (2) M20
Color: Black
' Product Overview '

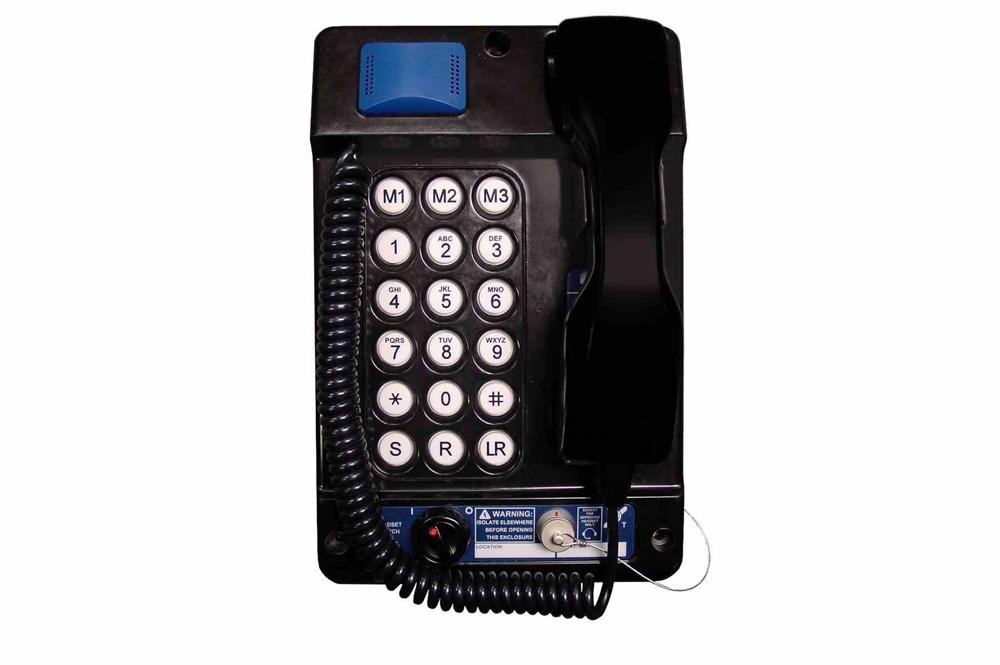

The ATEX-EPPH-NM-ALG-18K-212 Explosion Proof Analog Telephone from Larson Electronics is a heavy-duty communication device that is suitable for ATEX rated combustible environments. The unit supports an 18-key dialpad, volume control and several user selectable features. A durable handset cord and an IP66 rating ensures comprehensive reliability during emergency situations. The ATEX-EPPH-NM-ALG-18K-212 is designed to provide safe, reliable communication in ATEX rated environments. This line-powered unit features an 18-key dialpad. Available buttons on the phone include the following: standard numerical with 3 direct dial buttons (M1, M2 and M3), S (store), R (recall) and LR (last number redial). Operators may choose between LD (pulse) or DTMF (tone) dialing, as well as a fixed call maximum time limit of 7 minutes from lifting the handset. A ringer level of 90 dBA (shrill warble tone) can be heard from a distance of 3.2 feet. The analog telephone features an integral ring detector and isolated hookswitch sensor. Durability: This unit is housed in a non-metallic, carbon loaded glass-filled polyester enclosure, with a polycarbonate handset. A chemical and vandal resistant keypad helps deter wear and tear during long-term use. The hookswitch is electronic/magnetic with no visible moving parts. This IP66 rated device can be used in ATEX rated work sites. The weatherproof telephone is ideal for use in hazardous locations with a temperature range of -20°C to +60°C and up to 95% non-condensing relative humidity. Connection: Compatible connections include: 2-wire telephone line, FXS Ports, analog PABX lines and PTSN. This weatherproof telephone is powered from the telephone line. Duplicated line terminals allows connection to a parallel device without an additional junction box. Since this telephone is line powered, it will continue working even if the main power source faults or is disconnected (no internal battery required). Hubs: Operators are provided access to two, M20 hubs at the bottom of the unit for completing cable and wiring connections. Mounting: The ATEX-EPPH-NM-ALG-18K-212 telephone is designed to be wall mounted via four mounting holes found in the back of the unit. Suggested Applications: Hazardous locations, industrial facilities, outdoor communications, construction sites, public areas, plant entrances, parking garages, airports and more.
