50W Explosion Proof Sight Glass Light - Glare-free Halogen Lamp - 120V - Aluminum - ATEX/IEC Rated
50W Explosion Proof Sight Glass Light - Glare-free Halogen Lamp - 120V - Aluminum - ATEX/IEC Rated
Sold by: LARSON ELECTRONICS
| ATEX-EXPSG-120-50W Explosion Proof Sight Glass Light | Features/Ratings |
| Unit Type: Explosion Proof Sight Glass Light | ATEX/IEC Rated |
| Dimensions: 6.6" x 4.4"- D | Ex II 2G Ex de IIC T3/T4 |
| Weight: 5 lbs | Ex II 2D Ex tD A21 IP67 T195/T130°C |
| Voltage: 120V AC | NEMA 4 |
| Watts: 50W | Corrosion Resistant |
| Halogen Lamp Life Expectancy: 2,500+ Hours | Waterproof |
| Beam Angle: Spot | |
| Ambient Operating Temperature: -20°C to +40°C | |
| Housing Material: Die-cast Aluminum Alloy | |
| Lens Material: Glass | |
| Mounting: Surface or Bracket | |
| Color: Metallic |

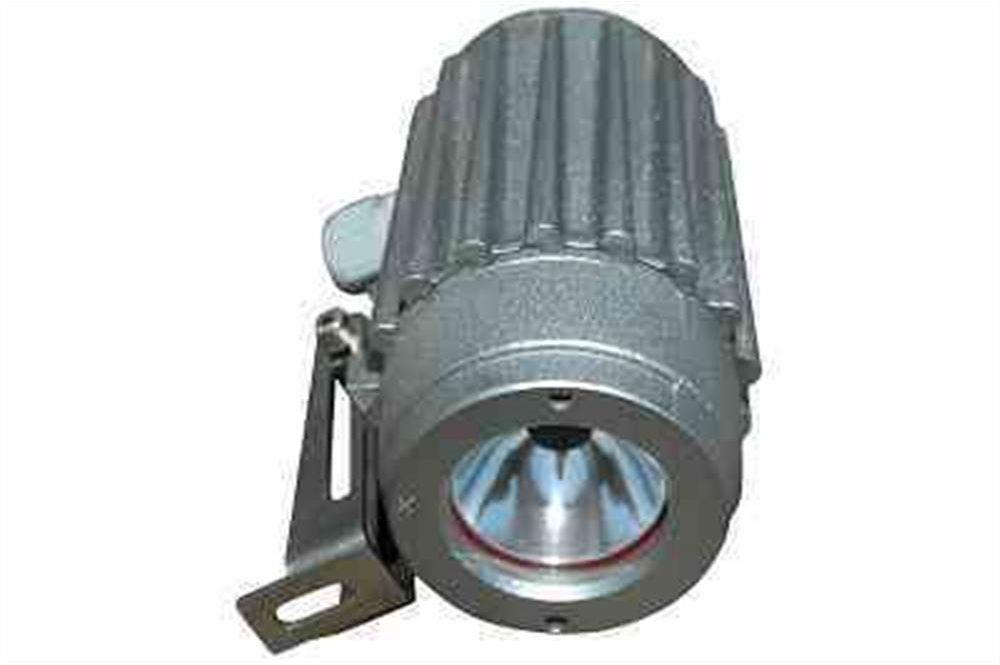

| Made in the USA The Larson Electronics ATEX-EXPSG-120-50W Explosion Proof Sight Glass Light is suitable for illuminating tanks, silos and vessels in flammable work sites. This 50-watt halogen lamp is ATEX/IEC rated and operates on 120V AC. Operators can mount the device on compatible surfaces, sight glass fittings and visual flow indicators using a bracket or nut. The ATEX-EXPSG-120-50W is a compact halogen fixture designed for sight glass applications in flammable work sites. The 50-watt unit operates on 120V AC and offers powerful illumination with help from internal reflectors surrounding the bulb. A spot light beam configuration ensures thorough and glare-free illumination when in use. The ATEX-EXPSG-120-50W is constructed of die-cast aluminum alloy with stainless steel fastening components. The lens is made out of glass with an O-ring seal. This explosion proof halogen light is IP67-rated and features resistance to corrosive elements. Internal components of the fixture are accessible through the screw-in lens for seamless maintenance, which also improves illuminative efficiency. The ATEX/IEC-rated explosion proof lamp is suitable for Zones 1 and 2 (gas); and Zones 21 and 22 (dust). Mounting: The ATEX-EXPSG-120-50W is compatible with several mounting requirements and configurations. For surface mounting, the unit can be attached directly using a nut, flanged adapter collar or hinged bracket. Bracket components allow robust, angled positioning of the light head. The ATEX/IEC rated fixture also supports compatibility with circular sight glass fittings (DIN 28120, DIN 28121), weld-neck type MV sight glass fittings, ANSI flange types and visual flow indicators. Applications: Hazardous locations, flammable work sites, silos, vessels, reactors, sight glasses, tank monitoring, meter reading, inspections and more. |
