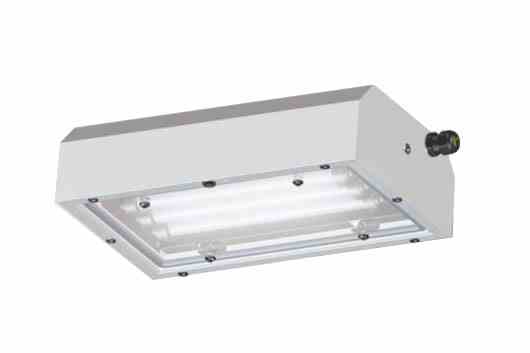

Larson 8W Explosion Proof Compact Fluorescent Fixture - Powder Coated Sheet Steel - ATEX/IECEx - IP66
Larson 8W Explosion Proof Compact Fluorescent Fixture - Powder Coated Sheet Steel - ATEX/IECEx - IP66
The Larson Electronics J13385 Explosion Proof Compact Fluorescent Fixture ensures high-quality illumination in ATEX-rated and flammable environments. The 8-watt lamp is compatible with 220-240V AC/DC and provides a powerful flood-beam light. Featuring powder coated sheet steel construction and an electronic ballast, operators can mount the IP66-rated fixture on walls, ceilings or surfaces.
The J13385 offers superior illumination in combustible facilities. This 8-watt fluorescent fixture operates on 220-240 AC/DC 50/60 Hz, with a current rating of 0.048 amps. Featuring a G5 lamp base, the cold-start light emits a flood beam pattern during use. This IP66-rated unit contains a 1-channel electronic ballast and is constructed of powder coated sheet steel. The lens is made out of tempered glass and the plug/cable entries are polyamide (black).
Wiring:
This explosion proof lamp features terminals for wiring, with a connection size of 4mm2 (finely stranded/solid). Markings on the terminal include L, N and PE.
Mounting:
The J13385 can be mounted on walls, ceilings or surfaces using a mounting bracket. For completing wiring connections, operators may access two 1.5" NPT hubs and three drilled holes measuring 1.5".
Applications:
ATEX-rated facilities, hazardous locations, hallways, entrance/exit points, construction sites, chemical processing, labs and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Lamp Type: Fluorescent (Single Tube)
Dimensions: 17.44" x 11.02" x 2.03"
Weight: 14.9 lbs
Total Watts: 8W
Voltage: 220-240V AC/DC, 50/60 Hz
Current: 0.048A
Lamp Base: G5
Beam Pattern: Flood
Electronic Ballast: 1-Channel EBÂ
Lamp Start: Cold Start
Ambient Temperature Range: -20°C to +50°C
Housing Material: Powder Coated Sheet Steel
Lens Material: Safety Glass w/ Hinge
Plug/Cable Entry Material: Polyamide (Black)
Mount: Wall, Ceiling or Surface
Terminal Marking: L, N, PE
Terminal Connection Size: 4 mm2 (Finely Stranded/Solid)
Drilled Holes: (3) 1.5"
Hubs: (2) 1.5" NPT
