72W Emergency Fluorescent Light - (2) 4' Lamps - Emergency Battery Backup - ATEX/IECEx

LARSON ELECTRONICSSKU: PL3-ATEX-HALP-EMG-48-2L-T8-2X36W
filler

Precio:
Precio de venta$2,344.00
 Más opciones de pago

Descripción

Specifications / Additional Information
ATEX-HALP-EMG-48-2L-T8-2X36W Hazardous Area Light Approvals/Ratings
Listing: United Kingdom, Europe and Asia ATEX/IECEx Zones 1 & 2 and 21 & 22
Lamp Technology: Fluorescent ATEX Ex II 2 G Ex d e mb IIC T4 Gb
Lamp Qty: (2) ATEX Ex II 2 D Ex tb IIIC T80°C
Dimensions: 67.4"L x 4.12"W x 3.5"H IECEx Ex d e mb IIC T4 Gb
Weight: 15 lbs IECEx Ex IIIC T80°C Db
Voltage: 120-277V AC 50/60 Hz IP66, IP67
Low Voltage (Optional): 12-24V DC Wet Area Suitable
Total Watts: 72W
Single-lamp Watts: 36W
Total Lumens: 5,616 lms
Single-lamp Lumens: 2,808 lms
Luminous Efficacy: 78 Lm/W
Lamp Life Expectancy: 24,000 Hours
Color Temperature: 5000K, 4100K or 3000K
Color Rendering Index: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: 150°
Lighting Configuration: Flood
Power Efficiency: -
Power Factor: -
Emergency Lumens: 900 lms
Emergency Runtime: 3 Hours
Amps: 0.6A @ 120V, 0.3A @ 240V, 0.259 @ 277V
Ambient Operating Temp Range: -30°C to +50°C
Operating Temp Range: T4 Rated Special Orders/Requirements
Housing Material: Polyester and Glass Fiber Housing
Gasket Material: Silicone Toll Free: 1-800-369-6671
Lens Material: Polycarbonate Lens Intl: 1-214-616-6180
Mounting: Surface (2) Flange Type Aluminum Brackets
Wiring Hub: (2) 1/2", 3/4", M20 or M25 Threaded NPT Hubs on Either Sides
' Product Overview '

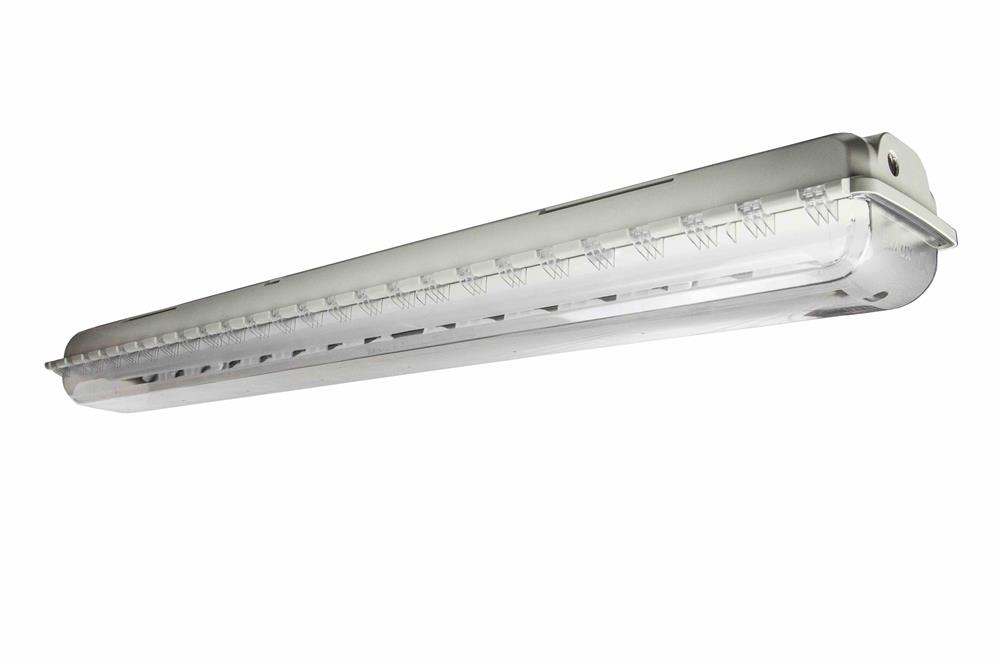

The ATEX-HALP-EMG-48-2L-T8-2X36W Hazardous Area Fluorescent Light Fixture from Larson Electronics is ATEX/IECEx approved for Zones 1 and 2 and 21 and 22. This emergency light fixture is specifically designed to handle the rigors of wet and corrosive marine environments, and comes equipped with an added battery backup providing 3 hours of emergency runtime. The ATEX-HALP-EMG-48-2L-T8-2X36W hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This 72-watt, two-lamp fixture offers 2,808 lumens per light (total 5,616 lumens). Color temperature options include the following: 5000K, 4100K or 3000K. This ATEX/IECEx rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant polycarbonate lens. Corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fixture is ATEX/IECEx approved for Zones 1 and 2, and 21 and 22. The ATEX-HALP-EMG-48-2L-T8-2X36W also carries a T4 temperature rating. Emergency Backup: This fluorescent light works, mounts and is wired like our ATEX-HALP-24-2L explosion proof fluorescent light fixtures. The main difference is that we add a battery backup unit that adds emergency light functionality to the fixture. This hazardous area emergency light will run the standard UL suggested 3 hours after power is lost. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency ballast that will run a single lamp at 900 lumens for 3 hours. The battery backup unit includes a switched leg for turning the light fixture on/off without kicking the unit into emergency mode. Surface Mounting: Flange type aluminum mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. Pendant Mounting: This light fixture can hang from the ceiling suspected by rigid pipe. Each fixture is equipped with either two 1/2", 3/4" NPT hubs, M20 or M25 hubs on either side of this fluorescent lamp. Operators will bring rigid pipe down to the threaded mounting ups. The wiring is fed down through the rigid pipe to one of the NPT hubs and tied to the fixture`s lead wires to complete the electrical connection. The remaining pendant hub provides support for the opposite end of the fixture. Suggested Applications: The ATEX-HALP-EMG-48-2L-T8-2X36W is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
